The Continuous NE-1000X Syringe Pump System is a dual-pump, single-channel continuous-flow syringe pump solution designed for uninterrupted infusion or withdrawal over extended periods. Flow rates between 0.02 nL/min and 35.33 mL/min.
General
The Continuous NE-1000X Syringe Pump System consists of two NE-1000X programmable syringe pumps configured to operate in an alternating (continuous) mode. While one pump delivers fluid, the second pump automatically refills, ensuring a constant, pulse-free flow without interruption.
This configuration is ideal for microfluidics, chemical delivery, cell culture perfusion, and any application requiring stable long-term flow. It's a reliable alternative to peristaltic pumps for long-term continuous flow, delivering significantly lower pulsation. Each pump retains full standalone programmability and can also be controlled via computer for automated and independent operation.

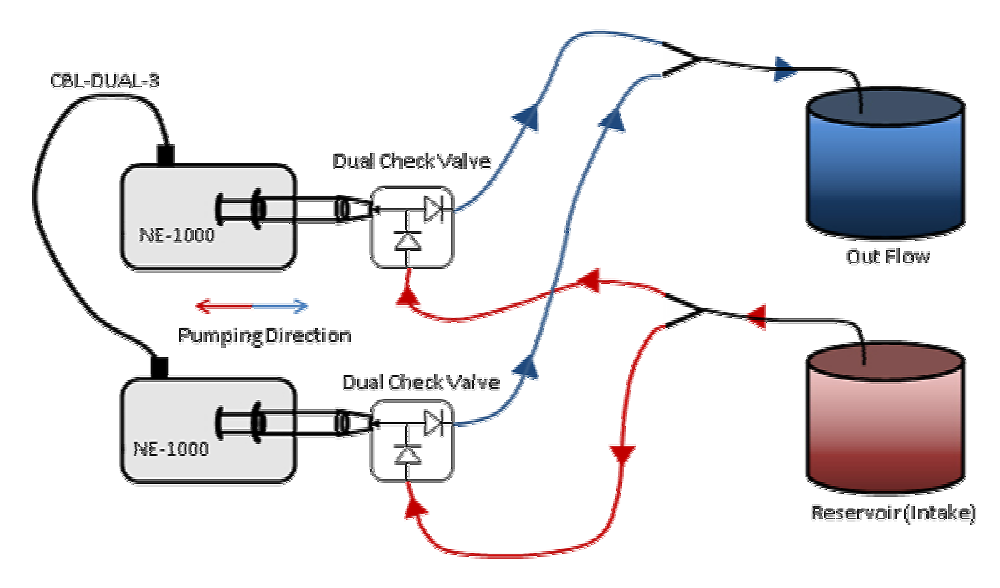

Composed of two NE-1000X syringe pumps and a specific dual cable to synchronize them, this system must be used with the compatible Dual Plumbing Kit, which includes plastic syringes, tubings, and convenient dual check valves. The X firmware update eliminates the problem of flow rate drop-off and pauses found in "Push-Pull" syringe pumps, when the pumps exchange roles.
Each NE-1000X pump can hold one syringe up to 60 mL. The two pumps are synchronized to maintain continuous output, eliminating downtime associated with syringe depletion. Pumps may be operated standalone or via computer using SyringePumpPro software. Up to 100 pumps can be daisy-chained via RS-232 for large-scale systems.
The main flow specifications for the NE-1000X system are:
- Flow rates from 0.02 nL/min (0.5 µL syringe) up to 35.33 mL/min (60 mL syringe)
- Can also hold a 140 mL syringe partially filled up to 120 mL
- Flow accuracy of ±1%
| Syringe size |
Min. flow rate |
Max. flow rate |
| 0.5 µL |
0.02 nL/min |
0.42 µL/min |
| 1 mL |
12.12 nL/min |
0.88 mL/min |
| 3 mL |
51.27 nL/min |
3.73 mL/min |
| 5 mL |
85.32 nL/min |
6.21 mL/min |
| 10 mL |
139.15 nL/min |
10.13 mL/min |
| 20 mL |
221.33 nL/min |
16.1 mL/min |
| 30 mL |
288.67 nL/min |
21.0 mL/min |
| 60 mL |
485 nL/min |
35.33 mL/min |
About pressure
Each NE-1000X pump produces approximately 18 lbs (8 kg) of linear force at maximum speed and up to 45 lbs (20 kg) at slower speeds. The maximum achievable pressure depends on syringe diameter and flow rate.
In a continuous configuration, pressure remains stable as pumps alternate between delivery and refill cycles.
Content
2x NE-1000X programmable syringe pumps (include X firmware upgrade for continuous operation)
1x Dual synchronisation cable
The plumbing kit is sold separately and is required for continuous operation.
Specifications
| Syringe compatibility |
Each pump holds 1 syringe from 0.5 µL up to 60 mL (or 140 mL partially filled)
Syringe inner diameter range: 0.100 to 50.00 mm
|
| Flow range |
0.02 nL/min to 35.33 mL/min per pump |
| Speed range |
0.0042404478 cm/h to 5.100464828 cm/min |
| Max. force |
20 kg (45 lbs) at minimum speed
8 kg (18 lbs) at maximum speed
|
| Pump modes |
Infusion and withdrawal
Continuous alternating delivery and refill operation
Dispense set volumes
Syringe purge mode
Power failure recovery with parameter retention
Real-time rate and direction changes
Motor stall detection and automatic stop
|
| Programmability |
Up to 41 programmable steps per pump
One-click program upload via Pumping Program Generator
Stored production protocols selectable from front panel
|
| Interface |
Keypad with optional audible feedback
Keypad lockout for secure operation
RS-232 for external control and pump daisy-chaining
TTL I/O logic control
|
| Alarm |
Programmable audible alarm for errors and program completion
|
| Selectable units |
mL/h, µL/h, mL/min, µL/min
|
| Dimensions |
22.9 x 14.6 x 11.4 cm (per pump) |
| Power supply |
12 VDC / 1 A (per pump) |
| Weight |
1.63 kg (3.6 lbs) per pump |
| Certification |
CE certified |
| Warranty |
2 years |
Documentation
NE-1000X continuous system brochure
Dual cable user guide
