The 1/4-28 Female to 10-32 Female Straight Adapter is a convenient fitting designed for microfluidic systems requiring a straight flow path. It ensures a leakage-free connection between two different thread sizes while offering excellent biocompatibility and chemical resistance. Sold individually.
General
This 1/4-28 Female to 10-32 Female Straight Adapter is a high-performance solution designed to create a secure, straight fluidic connection while simultaneously allowing you to transition between two different thread sizes. Manufactured from PEEK (Polyetheretherketone), this component is a top choice for applications demanding high levels of chemical resistance, pressure tolerance, biocompatibility, and mechanical integrity.
While our polypropylene (PP) connectors are a cost-effective and reliable choice for many general-purpose, low-pressure applications, our PEEK connectors are designed for more demanding scenarios.
Features
- Straight Design: The straight design is ideal for extending a fluidic line or connecting two components in a direct path, ensuring the most compact and efficient system layout.

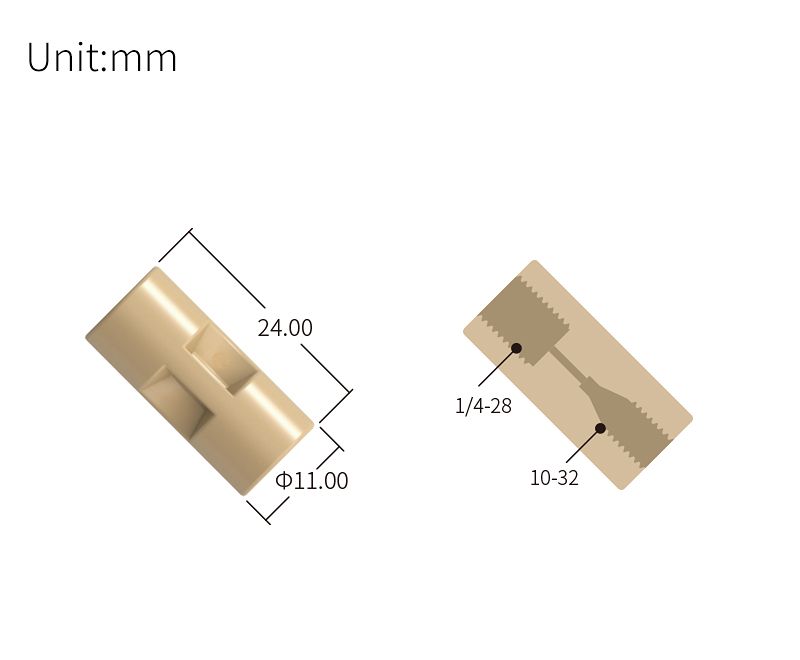

- Thread Adapting: This adapter features a 1/4-28 Female port on one end and a 10-32 Female port on the other. This allows you to seamlessly integrate components with different thread sizes, providing flexibility in your system's design.
- Biocompatibility: PEEK is biologically inert and non-toxic, which is critical for biomedical and life science applications where the fluid comes into contact with biological samples, cells, or tissues.
- Chemical Compatibility: PEEK is highly resistant to a vast range of aggressive solvents, acids, and bases. This means the connector will not degrade over time and will not leach contaminants into your samples.
Content
1x 1/4-28 Female to 10-32 Female Straight adapter
Specifications
| SKU |
DM-AD-052 |
| Wetted Material |
PEEK |
| Material |
PEEK |
| Port Type |
1/4-28 (F)
10-32 (F, coned) |
DM-AD-052
Documentation
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
