1/4-28 Flangeless Fitting (10-pack) - PP

This set of 1/4-28 flangeless fittings is designed for secure connections with 1/16" or 1/8" OD rigid tubing in microfluidic systems. Made from polypropylene (PP), each fitting includes a nut and ferrule, offering good chemical resistance and reliable sealing. Sold in packs of 10.

$25.00

Product SKU:

Recommended Tube OD: (Required)

1/16" (1.6 mm)

1/8" (3.2 mm)

Quantity:

Adding to cart… The item has been added

See all options Compare variants and lead times

Ask an expert Talk to our engineers & PhDs

Worldwide Express Shipping

Delivery in 1-3 days for products in stock

Simplified Purchasing

Easily request a quote and track your orders.

Outstanding Support

Support by a team of Engineers and PhDs (Inhouse)

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

Recommended Tube OD

Sort by

1/4-28 Flangeless Fitting (10-pack) - PP

SKU: DM-ST-002

1/16" (1.6 mm)

$25.00

Buy in bulk and save

Available immediately

1/4-28 Flangeless Fitting (10-pack) - PP

SKU: DM-ST-001

1/8" (3.2 mm)

$25.00

Buy in bulk and save

Available immediately

This set of 1/4-28 flangeless fittings is designed for secure connections with 1/16" or 1/8" OD rigid tubing in microfluidic systems. Made from polypropylene (PP), each fitting includes a nut and ferrule, offering good chemical resistance and reliable sealing. Sold in packs of 10.

General

A set of PP flangeless fittings to connect 1/16" or 1/8" OD rigid tubing to 1/4-28 UNF threaded ports in your microfluidic setup. These fittings eliminate the need to flange tubing, simplifying installation while providing a removable and reusable solution. The polypropylene construction ensures compatibility with a wide range of chemicals, making them suitable for routine lab use and disposable systems.

Features

Chemical Resistance: Made from polypropylene for compatibility with common solvents and reagents.
Leak-Free Seal: Nut and ferrule combination ensures secure, low-pressure connections.
Ease of Use: Flangeless design simplifies assembly without specialized tools.

Content

10x Flangeless Fitting 1/4-28 PP (nut + ferrule) for 1/16" or 1/8" OD rigid tubing

Specifications

SKU	DM-ST-002	DM-ST-001
Wetted Material	PP	PP
Material	PP	PP
Recommended tubing OD (mm)	1/16" (1.6mm)	1/8" (3.2mm)
Recommended Tubing Material	Rigid tubings (PTFE, PEEK, etc.)	Rigid tubings (PTFE, PEEK, etc.)

DM-ST-002

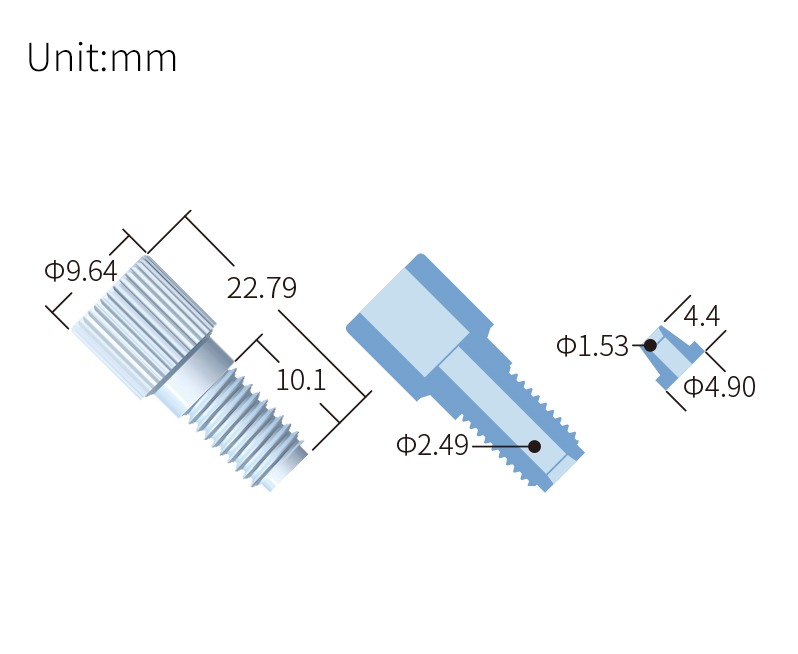

technical drawing of Pre-torque flangeless fittings – two piece set for 1/4-28 (pack of 10) - PP ST-002

DM-ST-001

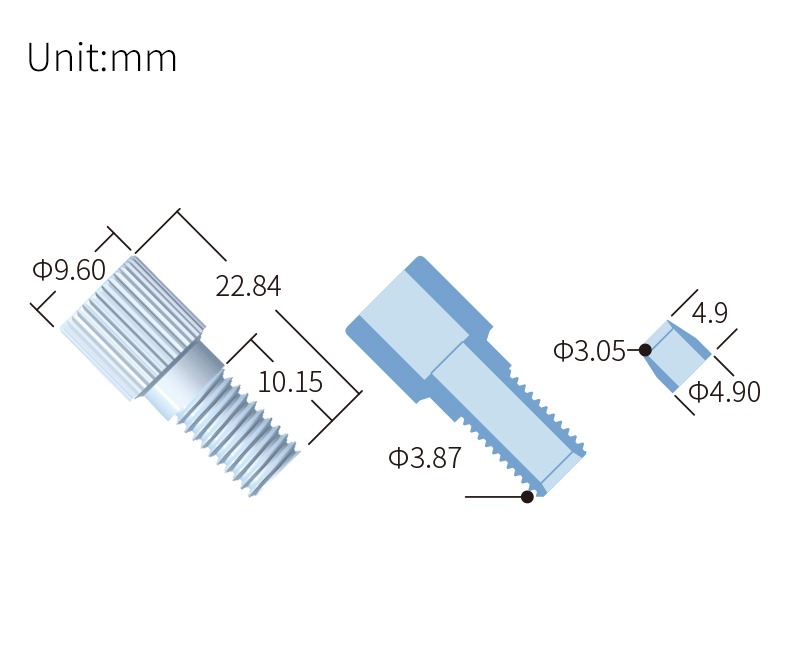

technical drawing of Pre-torque flangeless fittings – two piece set for 1/4-28 (pack of 10) - PP ST-001

Documentation

Check the chemical compatibilities for this product here: PP - Chemical Resistance Chart
