The 1/4-28 Headless Flangeless Fitting is a durable, low-profile connector for high-pressure microfluidic systems. It is available in two sizes for tubing with 1/16" (1.6 mm) and 1/8" (3.2 mm) OD, and is sold in a convenient 10-pack.
General
This Headless Flangeless Fitting is a high-performance solution designed to create a secure, high-pressure seal with rigid tubing in a compact format. The nut is manufactured from PEEK (Polyetheretherketone), while the internal ferrule is made of ETFE (Ethylene tetrafluoroethylene). This combination of materials leverages the mechanical strength of PEEK with the exceptional chemical inertness and low friction of ETFE, making it a reliable choice for demanding lab scenarios.
Features
- Headless Design: The headless design allows the fitting to be installed in very tight spaces or in high-density manifolds where a traditional nut would be difficult to reach. It requires a dedicated installation tool to be tightened, and when correctly installed, the fitting sits flush or below the surface of the port.
- Flangeless Functionality: This fitting creates a secure connection without requiring the end of the tubing to be flared or flanged. The PTFE ferrule provides a strong, low-friction grip on the tubing, simplifying assembly and ensuring a leak-free seal.
- PEEK & ETFE Construction: The PEEK nut provides exceptional biocompatibility, mechanical strength and pressure tolerance, while the ETFE ferrule offers a high degree of chemical inertness to a vast range of aggressive solvents, acids, and bases. This construction ensures the connector will not degrade over time and will not leach contaminants into your samples.
Content
10x Headless Flangeless Fitting 1/4-28 (PEEK nut + ETFE ferrule) for 1/16" or 1/8" OD rigid tubing
Specifications
| SKU |
DM-ST-029 |
DM-ST-030 |
| Nut Material |
PEEK |
PEEK |
| Ferrule Material |
ETFE |
ETFE |
| Port Type |
1/4-28 (M) |
1/4-28 (M) |
| Recommended Tubing Material |
Rigid Tubing (PEEK, PTFE, etc.) |
Rigid Tubing (PEEK, PTFE, etc.) |
| Recommended Tube OD |
1/16" (1.6 mm) |
1/8" (3.2 mm) |

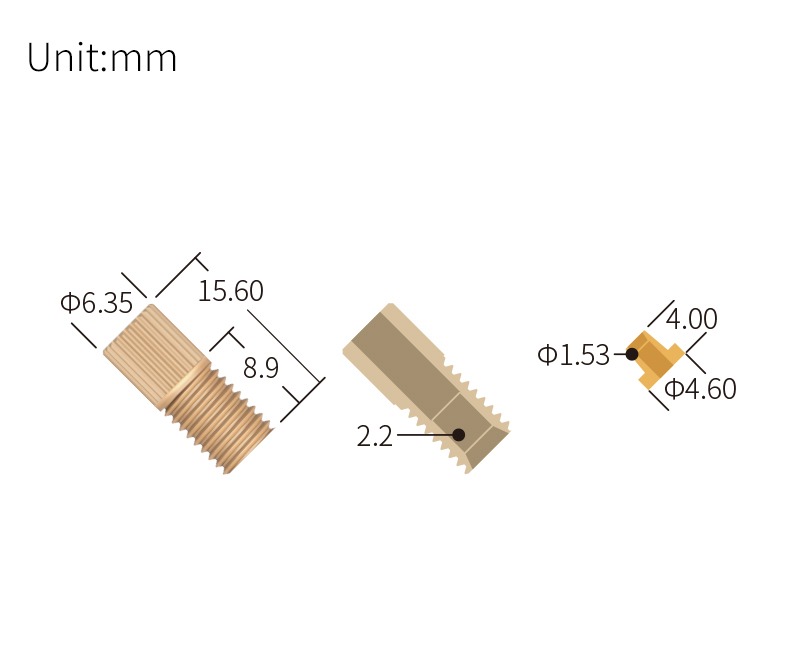

DM-ST-029

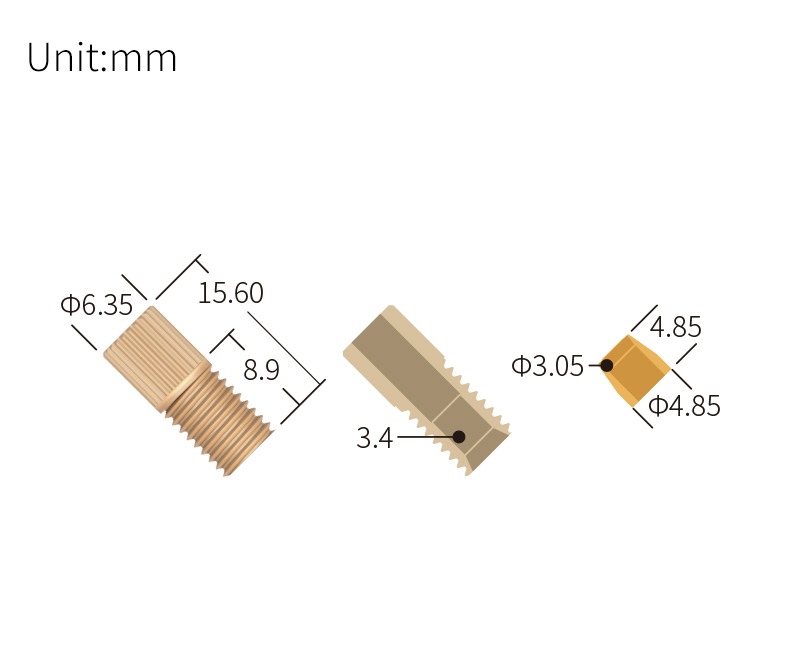

DM-ST-030
Documentation
Check the chemical compatibilities for this product here: ETFE - Chemical Compatibility Chart
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
