The PP Elbow Barb to Male 1/4-28 Adapter is a fitting designed for fluidic connections, featuring a 90-degree elbow shape and constructed from PP for chemical compatibility. It is available in three sizes to accommodate tubing with IDs of 1/16" (1.6 mm), 3/32" (2.4 mm), and 1/8" (3.2 mm).
General
This product is designed for creating reliable, low-pressure connections in microfluidic systems where a 90-degree directional turn is required. It connects flexible tubing to any 1/4-28 flat-bottom receiving port, simplifying the layout of your system and saving space. Available in three variants, it accommodates tubing with inner diameters of 1/16", 3/32", and 1/8".
Features
- L-shaped Design: Facilitates directional fluid connections, allowing for compact and organized system layouts.
- Durable Material: Constructed from high-quality Polypropylene (PP), ensuring compatibility with a wide range of common aqueous solutions and solvents.
- Tubing Compatibility: The barbed end creates a reliable seal with flexible tubing, including Silicone and Tygon.
- Multiple Size Variants: This adapter is available in sizes to accommodate flexible tubing with inner diameters of 1/16" (1.6 mm), 3/32" (2.4 mm), and 1/8" (3.2 mm).
Content
10x PP 1/4-28 Male to Barbed Elbow adapters
Specifications
| SKU |
DM-AD-022 |
DM-AD-023 |
DM-AD-024 |
| Wetted Material |
PP |
PP |
PP |
| Material |
PP |
PP |
PP |
| Port Type |
Barbed
1/4-28 (M) |
Barbed
1/4-28 (M) |
Barbed
1/4-28 (M) |
| Recommended Tubing Material |
Flexible tubing (Silicone, Tygon, etc.) |
Flexible tubing (Silicone, Tygon, etc.) |
Flexible tubing (Silicone, Tygon, etc.) |
| Recommended Tubing ID (mm) |
1.6 mm / 1/16" |
2.4 mm / 3/32" |
3.2 mm / 1/8" |

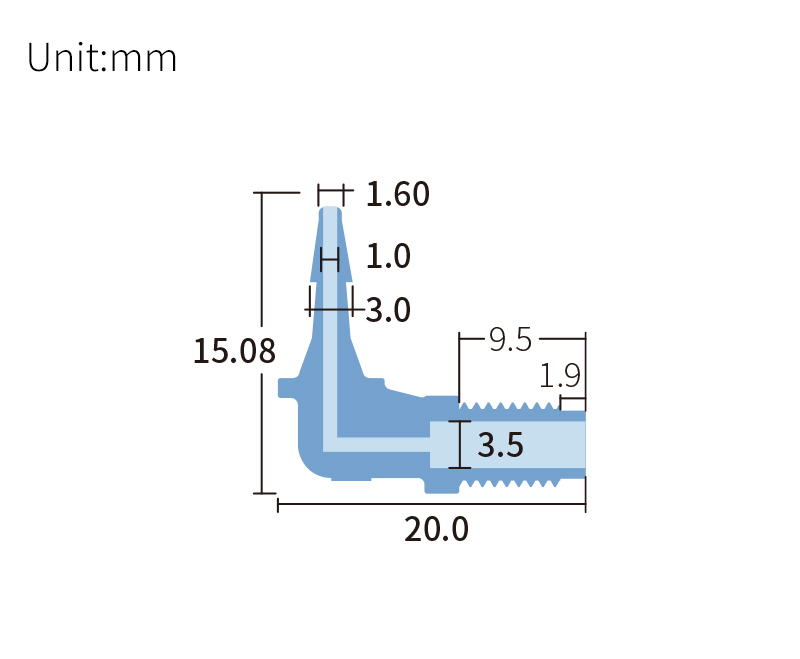

DM-AD-022

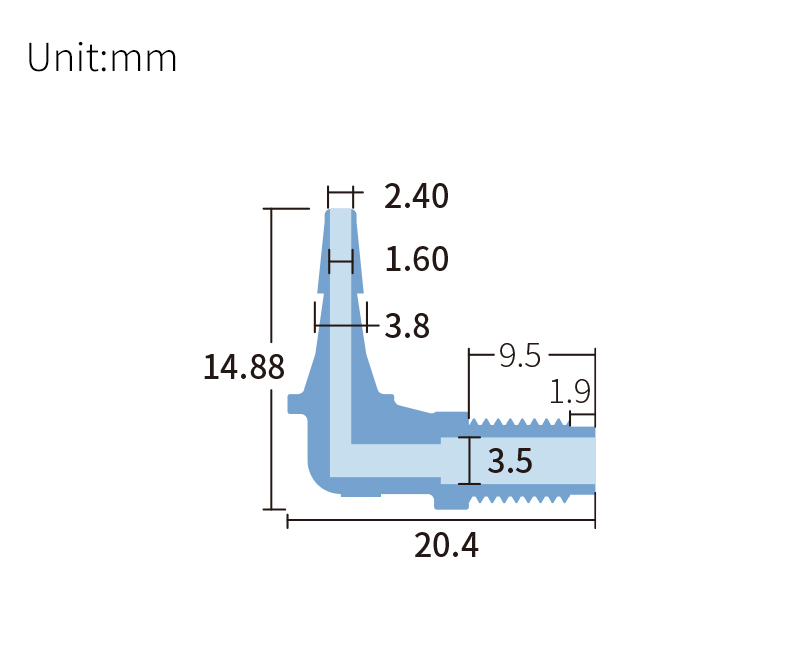

DM-AD-023

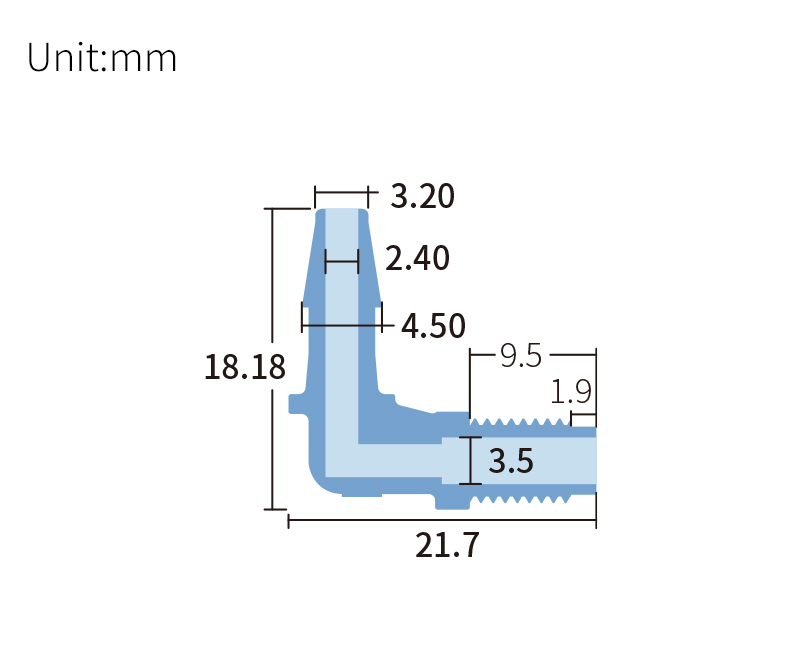

DM-AD-024
Documentation
Check the chemical compatibilities for this product here: PP - Chemical Resistance Chart
