This 4 Straight Channels Chip by Microfluidic ChipShop, crafted in PMMA or COC, features 4 parallel channels in various thicknesses and is manufactured via injection molding. Mini Luer connections provide leak-free inlet and outlet tubing junctions.
General
ChipShop chips are convenient, cost-effective, and reliable for all your experiments:
- Mini Luer connection molded with the chip: leak-free
- Highly-resistant and optically clear material: PMMA (Polymethylmetacrylate) or COC (Topas)
- Various sizes available
- Standard microscope glass slide size
Content
1x 4 straight channels chip with mini Luer ports
Specifications
| Reference |
CS-10000038
CS-10000039
|
CS-10001814
CS-10000087
|
CS-10001815
CS-10000089
|
CS-10001816
CS-10000091
|
CS-10001819
CS-10000109
|
CS-10001818
CS-10000107
|
| ChipShop reference |
Fluidic 143 |
Fluidic 145 |
Fluidic 144 |
Fluidic 156 |
Fluidic 180 |
Fluidic 138 |
| Number of channels |
4 |
| Channel width (µm) |
20 |
50 |
100 |
200 |
800 |
1000 |
| Channel depth (µm) |
20 |
50 |
100 |
200 |
20 |
200 |

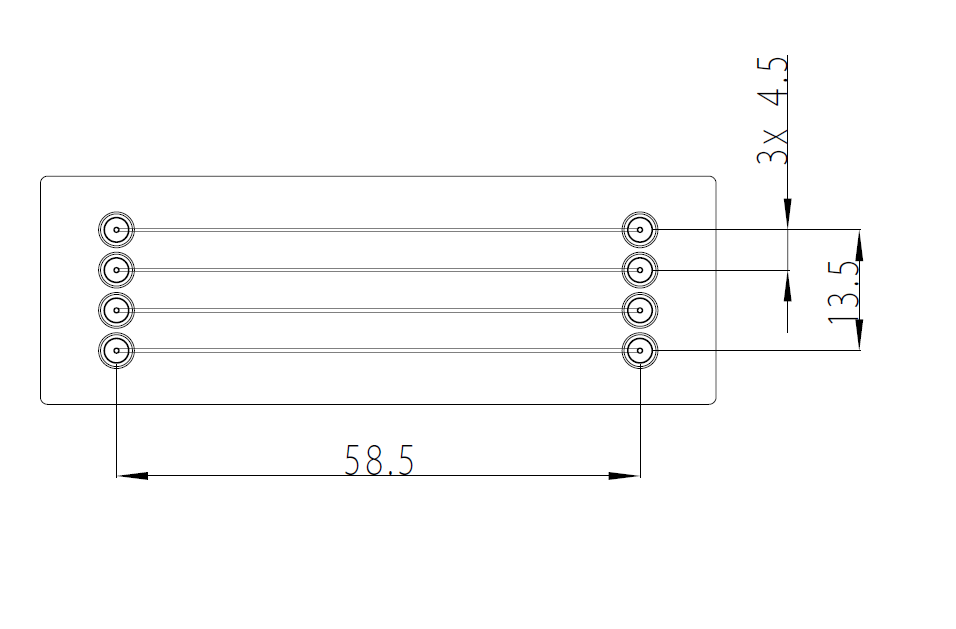

| Channel length (mm) |
58.5 |
| Cover lid thickness (µm) |
175 (PMMA) / 140 (COC) |
| Material |
PMMA or COC |
The old reference of CS-10001814 is CS-10000086.
The old reference of CS-10001816 is CS-10000090.
The old reference of CS-10001815 is CS-10000088.
The old reference of CS-10001818 is CS-10000106.
The old reference of CS-10001819 is CS-10000108.
Documentation
Click to read more information about ChipShop chips material properties.
? 4 straight channels chip Fluidic 143 datasheet
? 4 straight channels chip Fluidic 145 datasheet
? 4 straight channels chip Fluidic 144 datasheet
? 4 straight channels chip Fluidic 156 datasheet
? 4 straight channels chip Fluidic 180 datasheet
? 4 straight channels chip Fluidic 138 datasheet
