Basic and affordable peristaltic pump with 3-digit LED motor speed display. Made in laboratory-grade ABS, this pump is easy to use and can reach flow rates down to a few µL/min.
Available with the new AMC pump heads from 1 to 12 channels, with 6 or 10 rollers for less pulsatility.
General

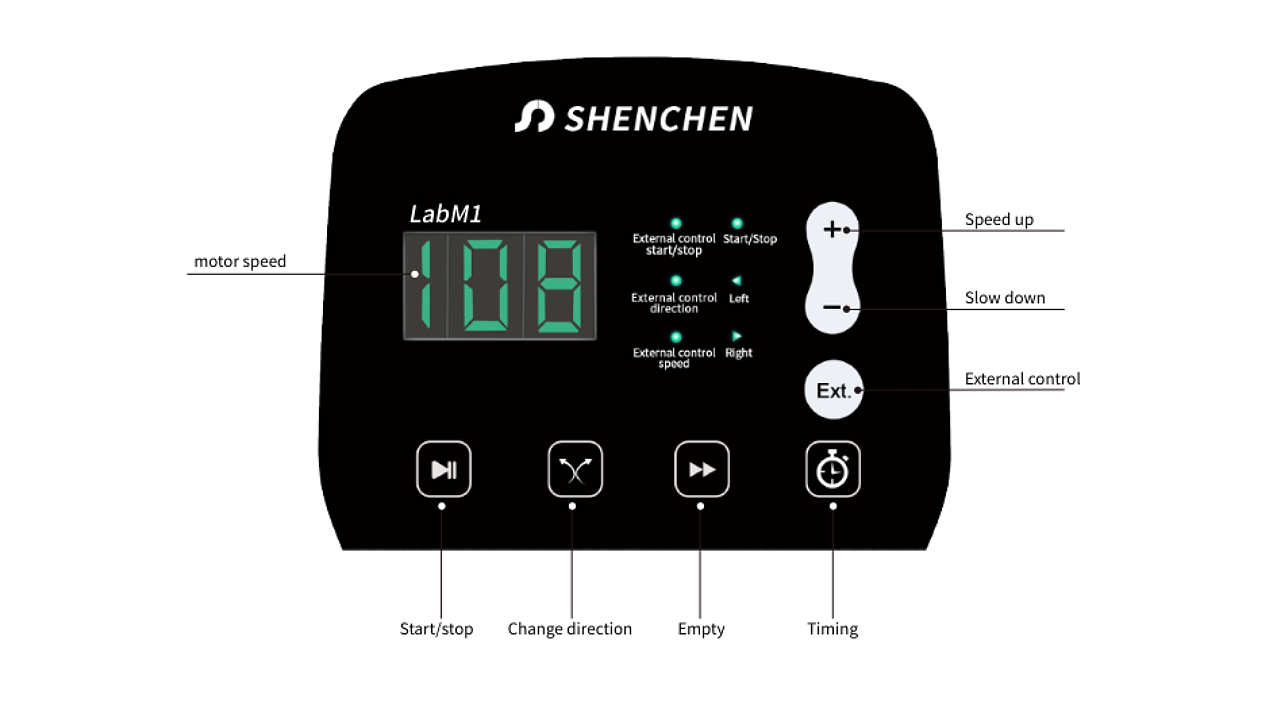

The LabM1 peristaltic pump is an accurate multichannel microfluidic flow control system for low budget requirements. It displays the pump motor speed in rpm on its 3-digit LED interface and can be controlled with its mechnical keypad or externally. Different features are available for basic commands: start, stop, speed up, slow down, change direction, fast forward for filling or emptying. Time range of 0.5 to 999 seconds can be used for simple time dispensing.
Features & Benefits
- 3 digital LED display motor speed, mechanical keypad control,
- ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
- Motor speed range of 0.1 to 150 rpm,
- Up to 12 channels with the AMC series pump heads,
- Flow rate ranges from 0.2 µL/min to 65 mL/min,
- Suitable for 0.8 - 1 mm wall thickness 3-stop tubing, ID: 0.13 - 3.17 mm,
- RS485 & RS232 interface, Modbus protocol,
- CE & SGS certifications.
Pump head options
- AMC (10 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
- AMC (6 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
More information about these pump heads is in the "Specifications" tab!
Tubing & Flow range
| Tubing ID x WT (mm) |
AMC 10 rollers
Flow rate (mL/min)
(0.1 - 150 rpm) |
AMC 6 rollers
Flow rate (mL/min)
(0.1 - 150 rpm) |
| 1 x 1 |
0.0050 - 7.55 |
0.0062 - 9.36 |
| 2 x 1 |
0.0183 - 27.52 |
0.022 - 33.06 |
| 2.4 x 0.8 |
0.0254 - 38.13 |
0.0319 - 47.81 |
| 3 x 1 |
0.0323 - 48.38 |
0.0434 - 65.17 |
| 0.13 x 0.86 |
0.0002 - 0.29 |
0.0002 - 0.31 |
| 0.19 x 0.86 |
0.0003 - 0.44 |
0.0003 - 0.46 |
| 0.25 x 0.86 |
0.0005 - 0.76 |
0.0005 - 0.80 |
| 0.51 x 0.86 |
0.0013 - 2.00 |
0.0014 - 2.05 |
| 0.89 x 0.86 |
0.0030 - 4.47 |
0.0031 - 4.65 |
| 1.14 x 0.86 |
0.0061 - 9.16 |
0.0065 - 9.74 |
| 1.42 x 0.86 |
0.0125 - 18.75 |
0.0142 - 21.28 |
| 2.06 x 0.86 |
0.0197 - 29.60 |
0.0234 - 35.17 |
| 2.79 x 0.86 |
0.0286 - 42.86 |
0.0372 - 55.77 |
Content
1x LabM1 peristaltic pump with AMC pump head
1x Power supply
1x 1m of 2*1 (2 mm ID, 4 mm OD) 3-stop peristaltic tubing per channel
Specifications
| Performance specifications |
| Flow rate range |
0.2 µL/min - 65 mL/min |
| Speed range |
0.1 - 150 rpm |
| Speed resolution |
0.01 rpm within 0-100 rpm, 1 rpm up to 150 rpm |
| Testing time range |
0.5 - 999 s |
| External control signal |
0-5 V, 0-10 V, 4-20 mA in option |
| Start/stop, change direction signal |
Passive switch signals such as foot pedal switch
Active switch signal: 5V, 12V, 24V (optional) |
| Communication interface |
RS232, RS485 supports ModBus protocol (RTU mode) |
| Electrical specifications |
| Motor type |
Stepper motor |
| Display |
3 digital LED |
| Control method |
Mechanical keypad |
| Keypad lifetime |
300,000 times |
| Power supply |
220V +/- 10% 50Hz/60Hz
110V +/- 10% 50Hz/60hz |
| Physical specifications |

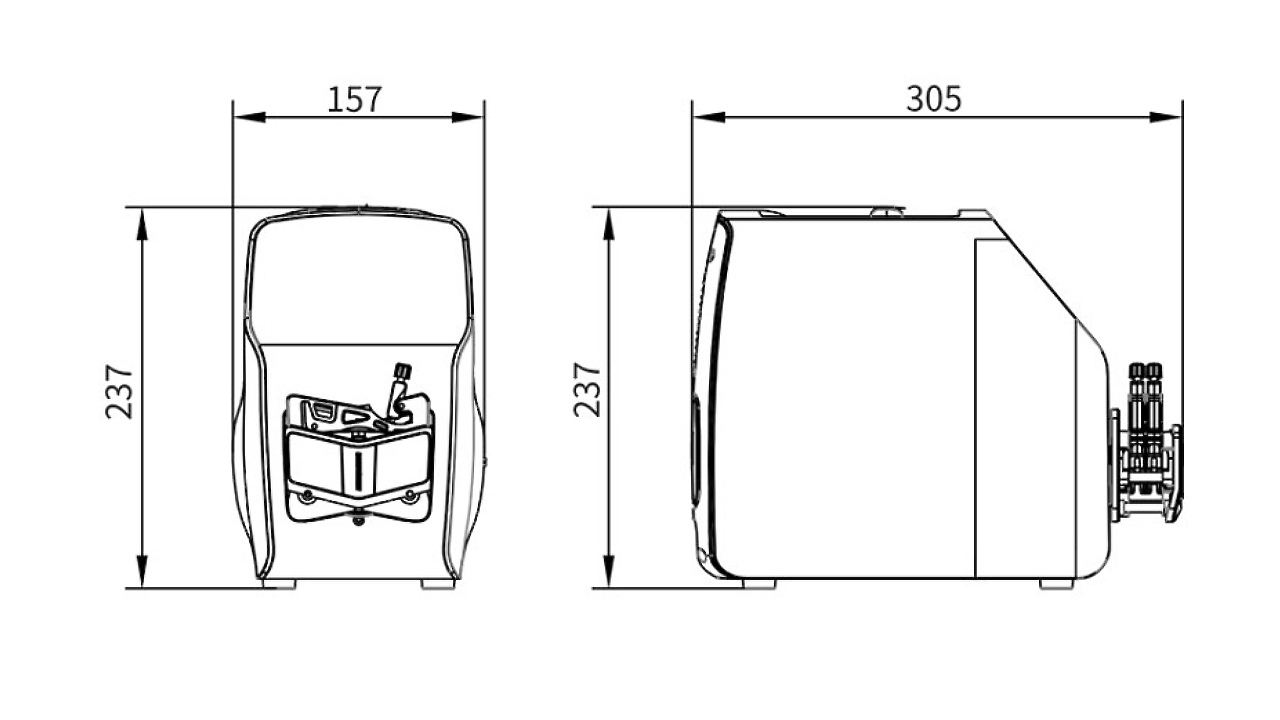

| Drive dimensions (LxWxH) |
261.4 x 157.3 x 236.9 mm |
| Drive weight |
4.4 kg |
| Power consumption |
< 50 W |
| Working temperature |
0-40 °C |
| Relative humidity |
< 80% |
| IP rate |
IP31 |
| Drive material |
ABS engineering plastic shell and UV spray coating |
| Pump head cartridge material |
POM/PVDF |
| Pump head rollers material |
304 stainless steel |
| Certifications |
CE, SGS |
| Warranty |
3 years |
Documentation
? LabM1 standard peristaltic pump brochure
? LabM series pump manual
? LabM series MODBUS Protocol
Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
