Flow rate peristaltic pump with 4.3" LCD touch screen with dispensing and fixed volume modes. Made in laboratory-grade ABS, this pump is easy to use and can reach flow rates down to a few µL/min at a very competitive price!
Available with the new AMC pump heads from 1 to 12 channels.
General
Innofluid Co. Ltd. is one of the leaders in peristaltic pumps and syringe pumps. They provide reliable and accurate pumps at the best price and with continuous innovation.
Features & Benefits
Industrial grade 4.3" true color LCD screen, touch screen control.
ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static
Motor speed range of 0.1 to 150 rpm
Up to 12 channels with the AMC series pump heads
Flow rate ranges from 0.2 µL/min to 60 mL/min
Suitable for 0.8 - 1 mm wall thickness 3-stop tubing, ID: 0.13 - 3.17 mm
RS485 & RS232 interface
CE & SGS certifications

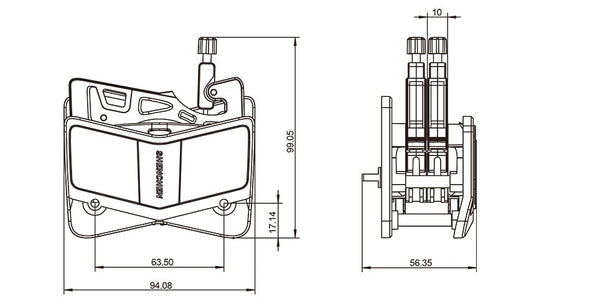

Pump head options
AMC (10 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
AMC (6 rollers): from 1 to 12 channels, with 1 meter of 2*1 (2 mm ID, 4 mm OD) per channel
More information about these pump heads is in the "Specifications" tab!
Characteristics

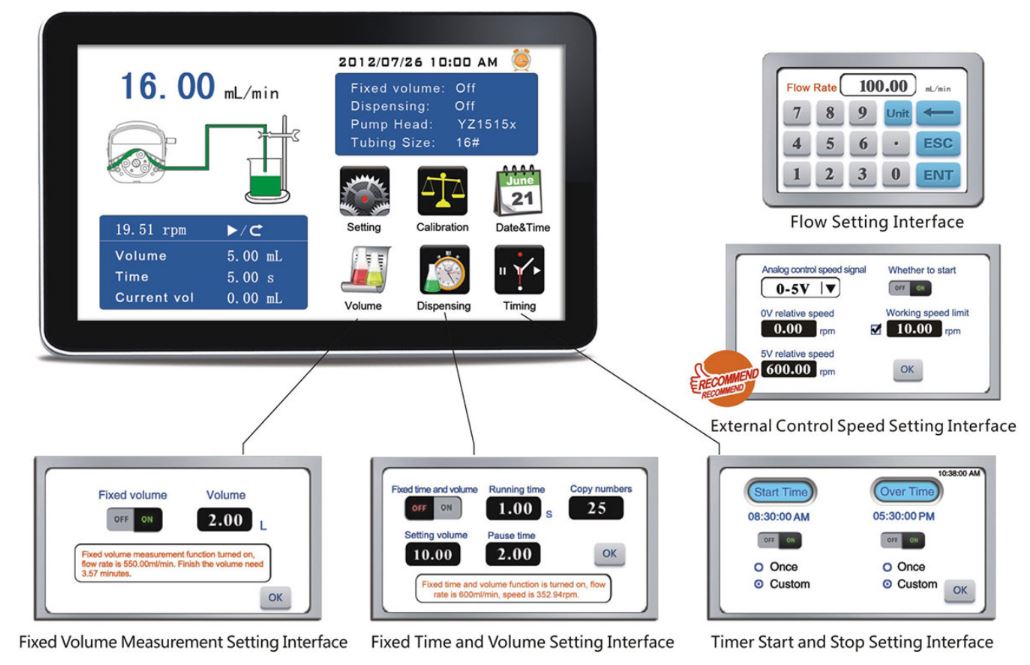

Dynamic display transferring status. Flow rate data, setting parameters, and system configuration display on the same screen.
3 working modes: fixed volume metering, fixed time and volume, timer start and stop, meet different transferring and dispensing requests.
Intelligent calibration function and online micro-adjusting function
Tubing & Flow range
Tubing ID x WT (mm)
AMC 10 rollers Flow rate (mL/min) (0.1 - 150 rpm)
AMC 6 rollers Flow rate (mL/min) (0.1 - 150 rpm)
1 x 1
0.0050 - 7.55
0.0062 - 9.36
2 x 1
0.0183 - 27.52
0.022 - 33.06
2.4 x 0.8
0.0254 - 38.13
0.0319 - 47.81
3 x 1
0.0323 - 48.38
0.0434 - 65.17
0.13 x 0.86
0.0002 - 0.29
0.0002 - 0.31
0.19 x 0.86
0.0003 - 0.44
0.0003 - 0.46
0.25 x 0.86
0.0005 - 0.76
0.0005 - 0.80
0.51 x 0.86
0.0013 - 2.00
0.0014 - 2.05
0.89 x 0.86
0.0030 - 4.47
0.0031 - 4.65
1.14 x 0.86
0.0061 - 9.16
0.0065 - 9.74
1.42 x 0.86
0.0125 - 18.75
0.0142 - 21.28
2.06 x 0.86
0.0197 - 29.60
0.0234 - 35.17
2.79 x 0.86
0.0286 - 42.86
0.0372 - 55.77
Content
1x LabV1 peristaltic pump with AMC pump head(s)
1x Power supply
1x 1m of 2*1 (2 mm ID, 4 mm OD) 3-stop peristaltic tubing per channel
Specifications
Performance specifications
Flow rate range
0.2 µL/min - 65 mL/min
Flow rate resolution
0.01 μL
Speed range
0.1 - 150 rpm
Speed resolution
0.01 rpm
Testing time range
0.1 s - 9999 min
Back suction angle
0-360°
External control signal
0-5 V, 0-10 V, 4-20 mA in option
Start/stop, change direction signal
Passive switch signals such as foot pedal switch Active switch signal: 5-24V (optional)
Communication interface
RS232, RS485 supports ModBus protocol (RTU mode)
Electrical specifications
Motor type
Stepper motor
Display
4.3" industrial grade - True color LCD screen
Control method
Touch screen and mechanical keypad
Keypad lifetime
300,000 times
Power supply
220V +/- 10% 50Hz/60Hz 110V +/- 10% 50Hz/60hz
Physical specifications

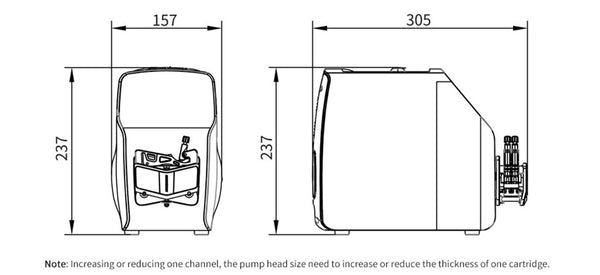

Drive dimensions (LxWxH)
259×157×237 mm
Drive weight
4.4 kg
Power consumption
< 50 W
Working temperature
0-40 °C
Relative humidity
< 80%
IP rate
IP31
Drive material
ABS engineering plastic shell and UV spray coating
