This pressure sensor can measure the pressure of fluids up to 16 bar with high precision. It is possible to place the inline sensor anywhere in your setup with no dead volume.
General
This flow-through sensor is perfect for both gases and liquids and can be easily plugged in-line into your microfluidic setup thanks to its compatibility with the Luer-Lock standard. It measures the pressure of fluid media flowing through and it works as a gauge pressure sensor by measuring the pressure relative to the atmospheric one.
- Accuracy up to 2 % Full Scale
- Extremely sensitive and responsive flow rate regulation
- Large pressure range: 0 – 16 bar
- Linear pressure response
- No dead volume
- Compatible with gases and liquids
- Plug and Play microfluidics: inline sensor
- Temperature-compensated
- Polarization safe
- Integrated measurement amplifier
The MFP Pressure Sensor can work our Sensor Reader (click here for more information). The Sensor Reader is sold separately and can manage up to 4 different sensors at the same time. Thanks to the integrated software you will able to record, store and analyze the data gathered by the sensor directly on your computer.
| High chemical resistance |

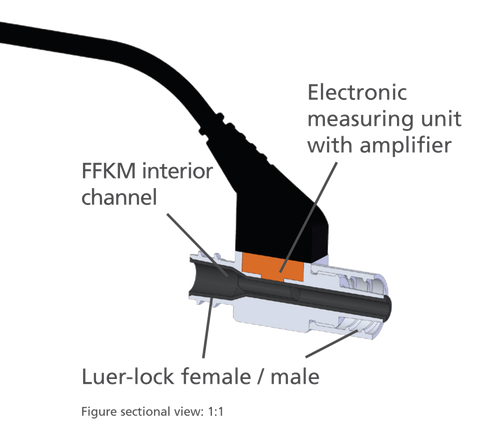

The interior channel is made in FFKM (perfluoroelastomer) having resistance to degradation against aggressive fluids and gases |
| FDA-certified |
The product is safe for the intended use and it is suitable for the food industry as well |
| Ease of use |
The sensor requires no maintenance and it is easy to clean |
| Connection |

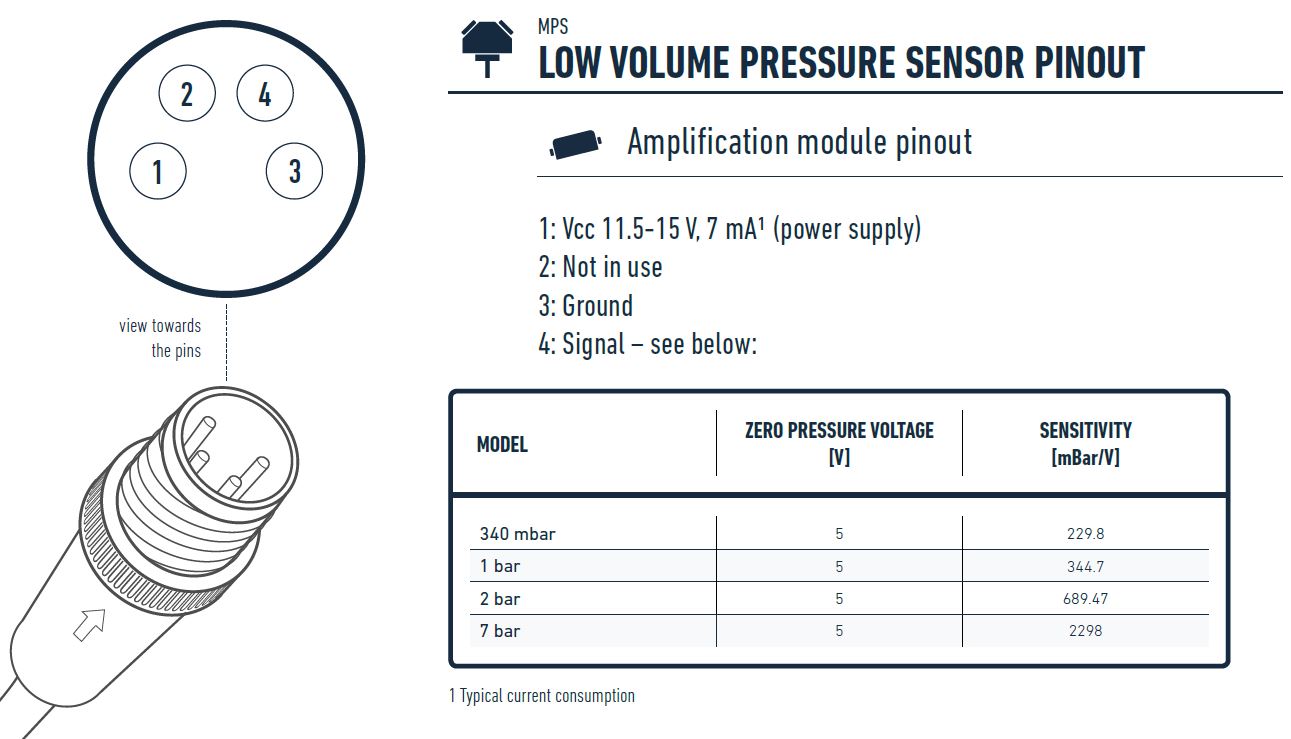

M8 electrical connection compatible with our Sensor Reader |
Application

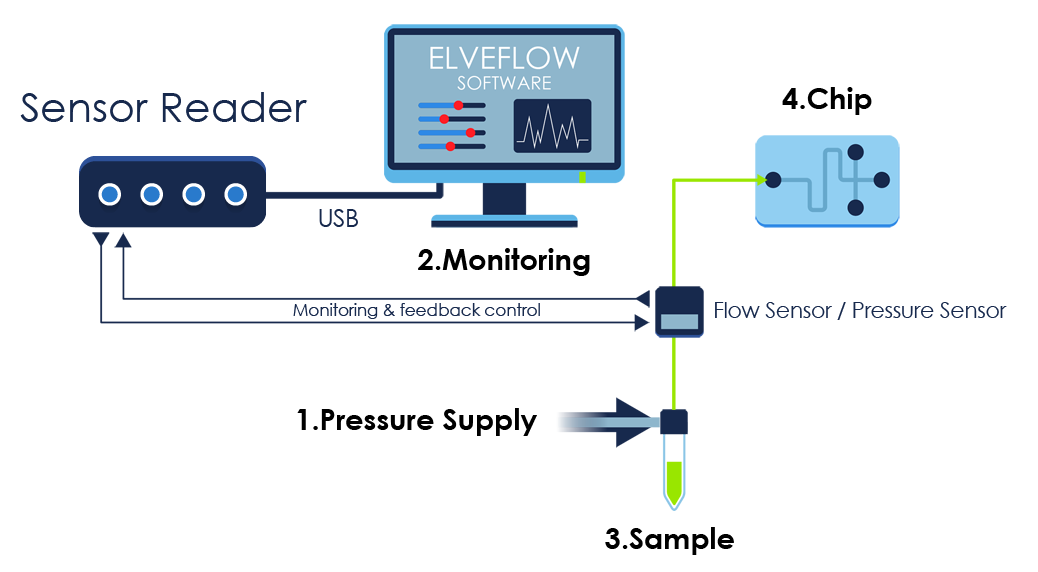

Create your complete microfluidic setup with the Microfluidic Luer-Lock Pressure Sensor and the Sensor Reader. They are both compatible with several flow control instruments (syringe pump, peristaltic pump, and pressure controllers). Our dedicated software and its user-friendly interface allow you to control the data acquisition directly on your pc. Place the inline sensor anywhere you want on your fluidic path and electrically connect the sensor to your Sensor Reader. This sensor does not modify the fluid flow in your system.
Content
1x MFP pressure sensor with integrated cable
Specifications
| Pressure range |
0 - 16 bar |
| Maximum pressure |
25 bar |
| Pressure range |
0 to 16 bar |
| Power supply |
12 to 30 VDC |
| Typical current |
7 mA |
| Materials |
- Housing: coated aluminum
- Interior flow channel: FFKM
- Molding: PU
|
| Output signal |
0.1 to 10 V |
| Zero Pressure voltage |
0.3 V |
| Sensitivity |
1600 mbar/V |
| Electrical Connection |
“push-pull” connector / M8 sensor plug |
| Mechanical Connection |
LUER-LOCK DIN EN 1707 |
| Temperature range |
15 to 45°C |
| Internal volume |
205 µL |
| Dimensions |
- Inner diameter: 4 mm < x < 1.8 mm
- Length: 31.2 mm
|
Documentation
MFP Pressure Sensor User Guide
