A pack of 6 resealable flow cell chips (6 bottom layers and 6 top layers) with topconnect interface, to be used with the Micronit Fluidic Connect Pro chip holder for resealable flow cells.

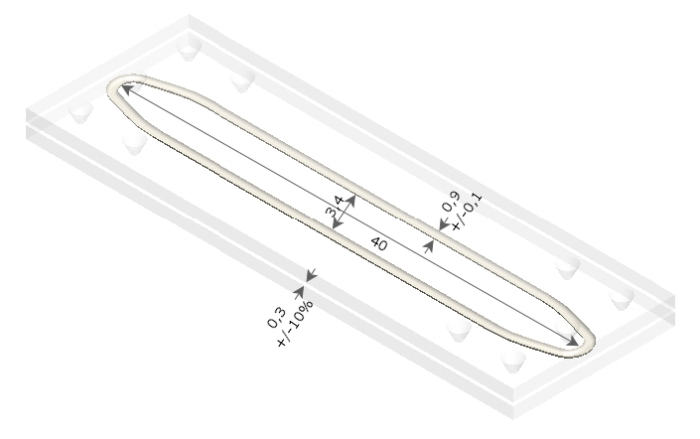

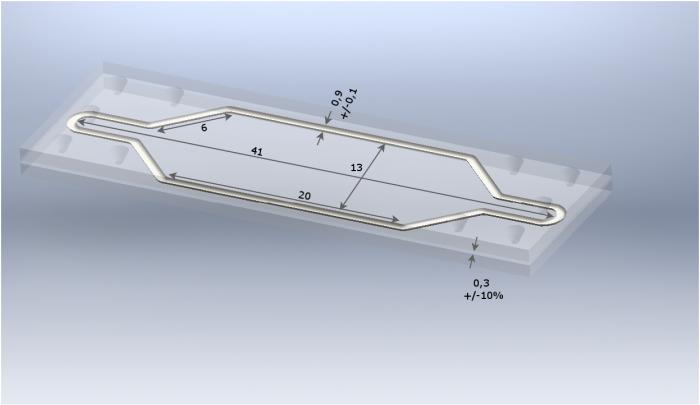

Available in two flow cell shapes: straight or extended.
General
Resealable flow cells are particularly useful when biological content should be added before flowing reagents in your chip. They consist of two layers:
- a bottom layer: plain borosilicate glass slide, thickness of 700 µm
- a top layer: etched borosilicate glass slide with elastomer, thickness of 1100 µm
The elastomer defines the flow path, and seals the chip when used with the Micronit Fluidic Connect Pro chip holder for resealable flow cells.
Content
6x Resealable flow cell bottom layer
6x Resealable flow cell top layer
Specifications
| |
00741 |
00740 |
| Shape |
Straight |
Extended |
| Material |
Borosilicate glass, elastomer (top layer)
Borosilicate glass (bottom layer)
|
| Thickness |
1100 µm (top layer)
700 µm (bottom layer)
|
| Chip holder |
Fluidic Connect Pro - flow cell version |
Documentation
?Resealable flow cell technical drawing
