This RS V baffle micromixer is designed for the easy and high throughput generation of nanoparticles or for the efficient mixing of two liquids. Made of glass, it comes with its 1/4-28 connection bar.
General

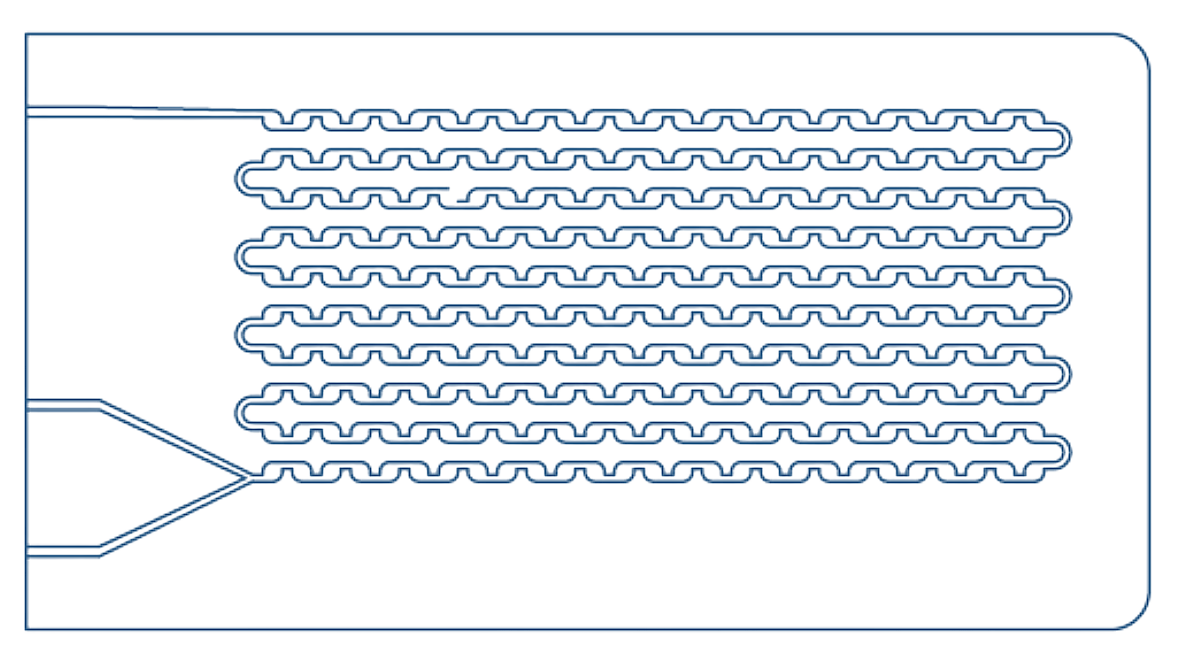

The RS V micromixer is a high-throughput microfluidic chip with dual inlets, specifically optimized for efficient nanoparticle production. Its key features include a no dead volume design, ensuring all fluid passes through the mixing channels with minimal waste. It is user-friendly and compact, making it ideal if space-saving solutions are valued. The chip also includes a 1/4-28 UNF connection bar, providing a standard, secure connection for ease of integration with the rest of your system. Simply connect the chip to your setup using 1/4-28 fittings for 1/16" OD or 1/8" OD tubing.
This baffle micromixer chip is convenient, cost-effective, and reliable for all your experiments:
- Highly-resistant and optically clear glass
- Standard 1/4-28 UNF threaded ports on its connection bar
- Easy handling

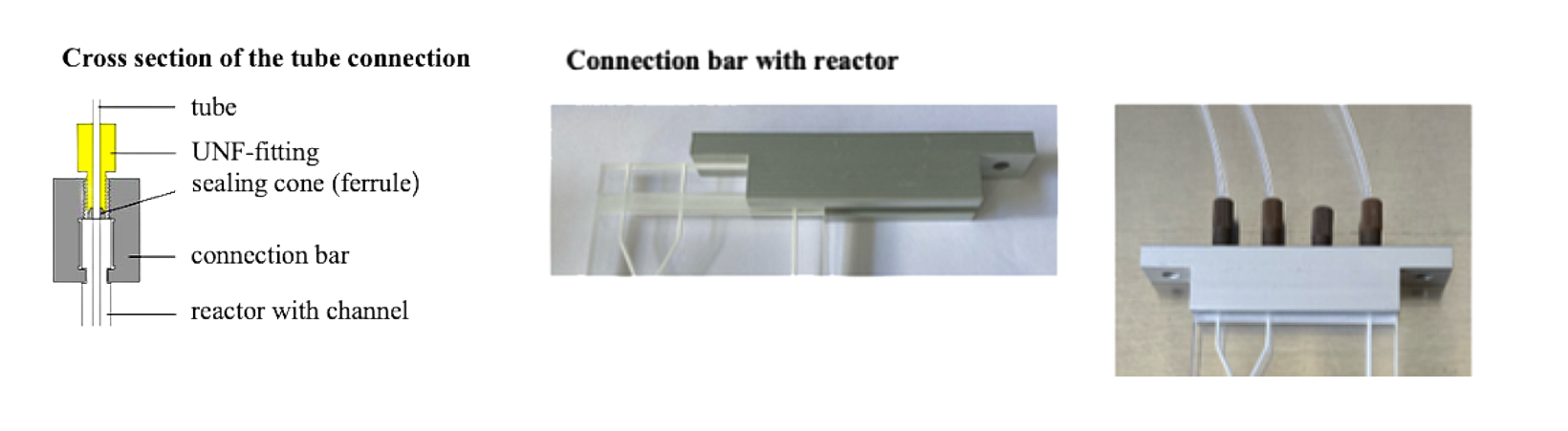

This chip comes with its 1/4-28 connection bar in aluminum. To connect the chip, follow the steps below.
- Position the chip: Slide the glass chip sideways into the connection bar using the guide groove. Align it so that the channel holes sit directly under the 1/4-28 threaded holes on the bar.
- Secure an additional connector: Insert an additional fitting into any connection bar port that does not align with a channel opening on the chip. Align the chip with the connection bar and hand-tighten the connector.
- Attach tubing: Attach each tube and fitting to its connection bar port, tighten them by hand until secure. Avoid overtightening; the torque limit is 0.4 Nm.
- The pressure created by the fittings will secure the chip in the connection bar.
Content
1x RS V baffle mixer chip in glass
1x Female 1/4-28 UNF connection bar
Specifications
| Inlets |
2 |
| Mixer type |
S |
| Volume |
1 mL |
| Cross-section |
0.7 mm |
| Permitted particle size |
100 µm |

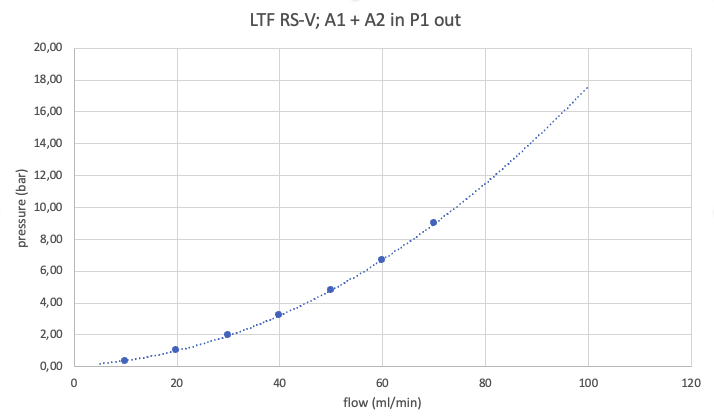

| Flow rate water @ 3 bar |
37 mL/min |
| Max pressure resistance |
15 bar |
| Chip dimensions |
115 x 60 x 6 ± 0.5 mm |
| Chip material |
Glass |
| Connection bar dimensions |
20 x 15 x 91 mm |
| Connection bar material |
Anodized aluminum |
| Connection bar ports |
Female 1/4-28 UNF |
M5 threads available on each side of the bar to attach it to your system.
Documentation
Wei Xu, Yuta Kadoya, Kaito Sennari, Waliul Islam, Tianli Zhang, Tomohiro Sawa, Fumika Akizuki, Hisaaki Hirose, Shiroh Futaki, Yukio Fujiwara, Yoshihiro Komohara, Takuro Niidome. (2023). Disulfiram encapsulated in polymer nanoparticles ameliorates thioacetamide-induced liver injury. Journal of Drug Delivery Science and Technology, 88, 104981, ISSN 1773-2247. https://doi.org/10.1016/j.jddst.2023.104981.
