The AMF RVM mini distribution rotary valve is an ultra-compact, zero dead-volume OEM valve that channels fluid to any of up to 12 ports for precise microfluidic routing.
Available in various configurations: distribution with 8, 10, or 12 ports, wetted materials PCTFE/PTFE, or PCTFE/UHMW-PE, and channel sizes from 0.5 mm to 1.0 mm.
Includes only the RVM mini valve assembly (P202-O drive + distribution valve head). USB-C cable and power supply must be added separately. Dedicated fittings are also available.
General
The RVM mini distribution valve builds on AMF's proven RVM fluidic platform, designed with one goal in mind: fitting precise channel selection into the tightest possible spaces. Its compact rotor-stator design gives you repeatable channel selection with no dead volume and very little carryover, even at this small scale. A new-generation electric motor and your choice of USB-C, RS232, RS485, TTL, analog I/O, or I2C make it easy to integrate into industrial or portable devices. And if you need something specific, custom port counts, wetted materials, and fluidic layouts are available on request.
Advantages
- Ultra-compact integration: its minimized footprint and light weight mean you can fit precise channel selection into even your most space-constrained instrument designs.
- Proven fluidic architecture: you get the same validated rotor-stator technology used across the wider RVM series, already trusted in demanding industrial and microfluidic applications.
- Zero dead volume, low carryover: the optimized valve interface keeps contamination and reagent loss to a minimum, so your distribution stays accurate and repeatable run after run.
- Precise, repeatable switching: an integrated angular encoder keeps positioning stable and channel selection reliable, even across fully automated workflows, thanks to an automatic homing routine at power-up.
- OEM-ready connectivity: USB-C plus three Pico-Lock™ connectors give you serial (RS232/RS485), I2C, TTL, and analog I/O communication (CAN on request), making it easy to integrate into your platform.
- Manifold-ready design: you can mount it directly onto microfluidic manifolds to build compact, high-density, multi-stage fluidic architectures.
- Broad chemical compatibility: PCTFE and PTFE wetted materials, with PEEK or UHMW-PE options if you need them, let you work confidently across a wide range of reagents and samples.
Applications
- Compact analytical instruments
- Diagnostic systems
- Microfluidic automation
- Lab-on-chip integration
- Portable and battery-operated devices
- Sample preparation and reagent routing
- High-density fluidic manifolds
Configurations
| Valve Type |
DISTRIBUTION |
| Function |
Lets you choose 1 among N channels |
| Number of ports |
(4, 6, on request) 8, 10, 12 |
| Also known as |
(N+1)-port/1-channel valve
N-port distribution valve
N-port selection valve
(N+1)-port/N-position valve |
Available distribution configurations
| Ports |
Channel size |
Wetted materials (body / rotor) |
| 4* |
2.0 mm |
PCTFE / PTFE |
| 6* |
0.5 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 8 |
0.5 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 8 |
0.8 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 8 |
1.0 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 10 |
0.5 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 10* |
0.75 mm |
PEEK / PTFE |
| 10 |
0.8 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 10 |
1.0 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 12 |
0.5 mm |
PCTFE / PTFE or PCTFE / UHMW-PE |
| 12 |
0.8 mm |
PCTFE / PTFE (10-32 UNF fitting) or PCTFE / UHMW-PE |
| 12 |
1.0 mm |
PCTFE / UHMW-PE |
*Available on request - please contact us.
Content
1x RVM mini valve assembly (P202-O drive + distribution valve head)
Power supply and cables are not included.
Fittings are not included (see the Related Products).
Specifications
Main valve specifications
| Valve configuration |
Zero dead-volume multi-port distribution with integrated angular encoder |
| 180° minimum switching time |
850 ms (down to 600 ms in some conditions) |
| Port-to-port switching time |
300 ms for 8 ports / 220 ms for 12 ports (down to 230 / 180 ms in some conditions) |
| Valve seat (stator) material |
PCTFE (PEEK on request) |
| Valve rotor material |
PTFE or UHMW-PE |
| Max. pressure |
7 bar (102 psi) |
| Channel diameter |
0.5, 0.8, or 1.0 mm (0.75 or 2.0 mm for some configurations on request) |
Detailed valve specifications
| Valve Type |
Distribution |
| Tube port fittings |
1/4-28 UNF, flat-bottom |
| Dead volume |
None |
| Number of channels inside rotary part |
1 |
| Maximum pressure |
7 bar (102 psi) |
| Configuration |
Internal volume |
Carryover volume |
Channel size |
| 6 ports |
2.5 µL |
1.5 µL |
0.5 mm |
| 8 ports |
2.5 µL |
1.5 µL |
0.5 mm |
| 8 ports |
13.8 µL |
6.7 µL |
1.0 mm |
| 10 ports |
3.5 µL |
1.7 µL |
0.5 mm |
| 10 ports |
13.8 µL |
6.7 µL |
1.0 mm |
| 12 ports |
3.5 µL |
1.7 µL |
0.5 mm |
General specifications
| Operating temperature |
15–40°C (59–104°F) |
| Storage temperature |
5–45°C (41–113°F) |
| Operating humidity |
20–80%, non-condensing |
| Electrical interface |
USB-C, 3 x Pico-Lock™ 1 mm pitch 4 pos. |
| Communication type |
UART via USB or Serial (RS232/RS485), I2C, TTL, analog I/O (CAN upon request) |
| Power |
22–32 VDC, 0.5 A peak |

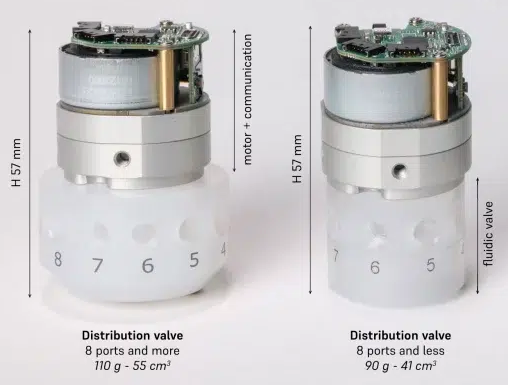

| Dimensions |
H 57 mm (2.24 in) ×
- 8 ports and less: Ø32 mm (1.26 in) top and Ø29 mm (1.14 in) down
- 10 ports and more: Ø32 mm (1.26 in) top and Ø39.5 mm (1.56 in) down
|
| Weight |
~90 g (0.20 lb) for 8 ports and less
~110 g (0.24 lb) for 10 ports and more |
Valve heads are interchangeable.
Other configurations are available upon request, including:
- UHMW-PE rotor
- PEEK valve seat
- Alternative channel diameters
- CAN communication
Documentation
RVM mini operating manual
RVM mini datasheet
Accessories and Wiring Scenarios
Maintenance guide
STEP file available on request.
