The Flangeless Colored Nut Only (pack of 10) – PP is specifically designed for securing connections with rigid tubing ranging from 1/16" (1.6 mm) to 1/8" (3.2 mm) OD, such as PTFE, PEEK, and other rigid materials. These nuts ensure a robust and reliable fastening solution, made from durable polypropylene (PP) to withstand various chemical conditions. Available in five distinct colors for easy channel identification.
General
These colored nuts are essential for establishing secure connections with rigid tubing in fluidic systems, providing both stability and leakage prevention. Made from polypropylene (PP), they deliver superior chemical resistance and physical durability, essential for demanding laboratory and industrial environments. Offered in a versatile range that supports tubing OD from 1/16" to 1/8", and available in Red, Blue, Green, Yellow, and Black for visual coding. Supplied in convenient packs of 10.
Features
- Compatibility with Rigid Tubing: Designed to fit and secure rigid tubing made from materials like PTFE and PEEK.
- Robust Construction: PP material ensures excellent chemical resistance and structural integrity.
- Versatile Size Range: Accommodates tubing OD from 1/16" to 1/8" for diverse applications.
- Color Coding: Available in five colors to simplify channel identification and system organization.
Content
10x Flangeless Colored Nut Only – PP (ferrule not included)
Specifications
| SKU |
DM-NU-005 |
DM-NU-006 |
DM-NU-007 |
DM-NU-008 |
DM-NU-009 |
| Material |
PP |
PP |
PP |
PP |
PP |
| Port Type |
1/4-28 |
1/4-28 |
1/4-28 |
1/4-28 |
1/4-28 |
| Recommended Tubing Material |
Rigid tubing (PTFE, PEEK, etc.) |
Rigid tubing (PTFE, PEEK, etc.) |
Rigid tubing (PTFE, PEEK, etc.) |
Rigid tubing (PTFE, PEEK, etc.) |
Rigid tubing (PTFE, PEEK, etc.) |
| Recommended Tubing OD |
1/16" (1.6 mm) to 1/8" (3.2 mm) |
1/16" (1.6 mm) to 1/8" (3.2 mm) |
1/16" (1.6 mm) to 1/8" (3.2 mm) |
1/16" (1.6 mm) to 1/8" (3.2 mm) |
1/16" (1.6 mm) to 1/8" (3.2 mm) |

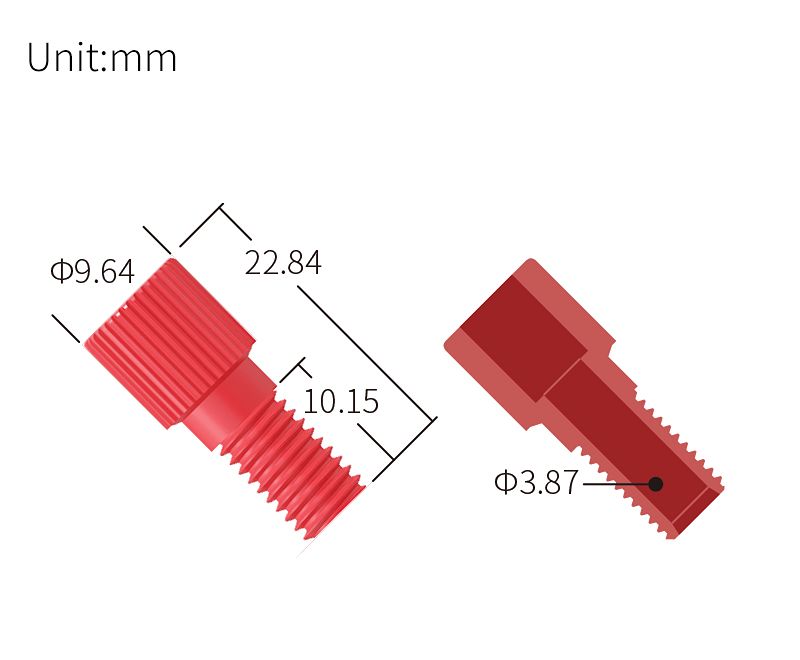

DM-NU-005

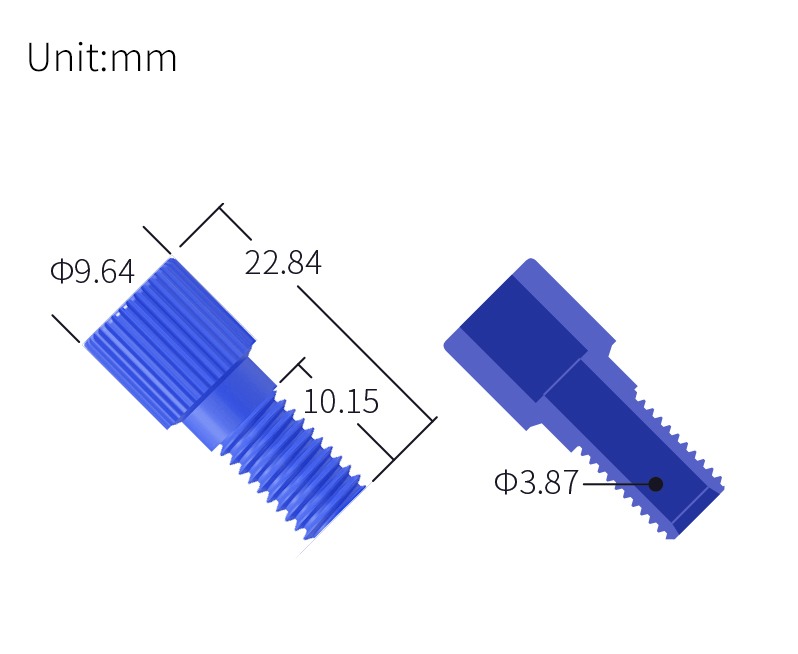

DM-NU-006

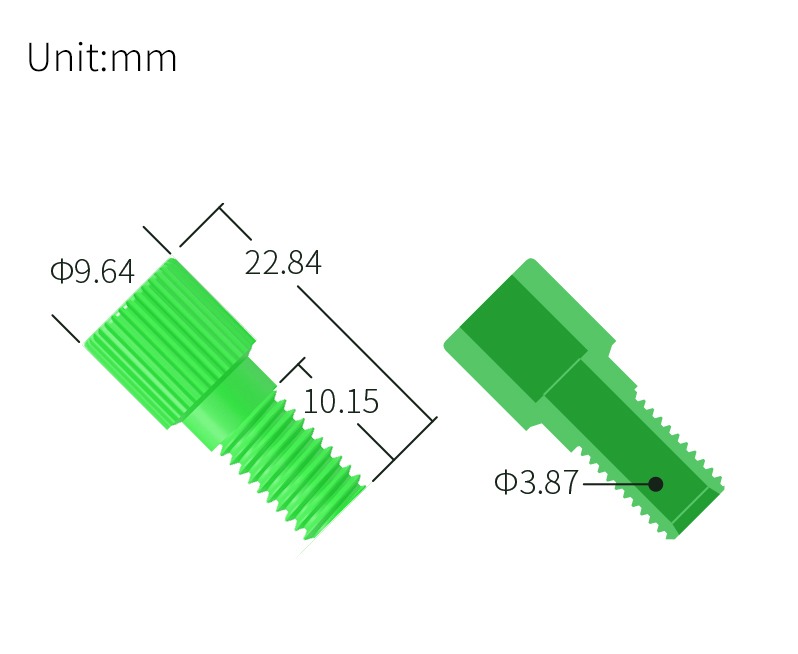

DM-NU-007

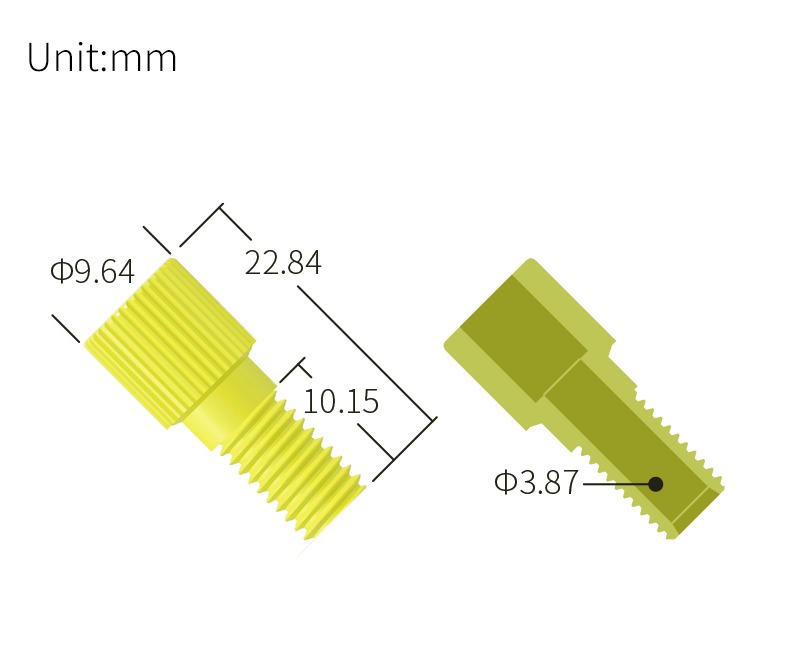

DM-NU-008

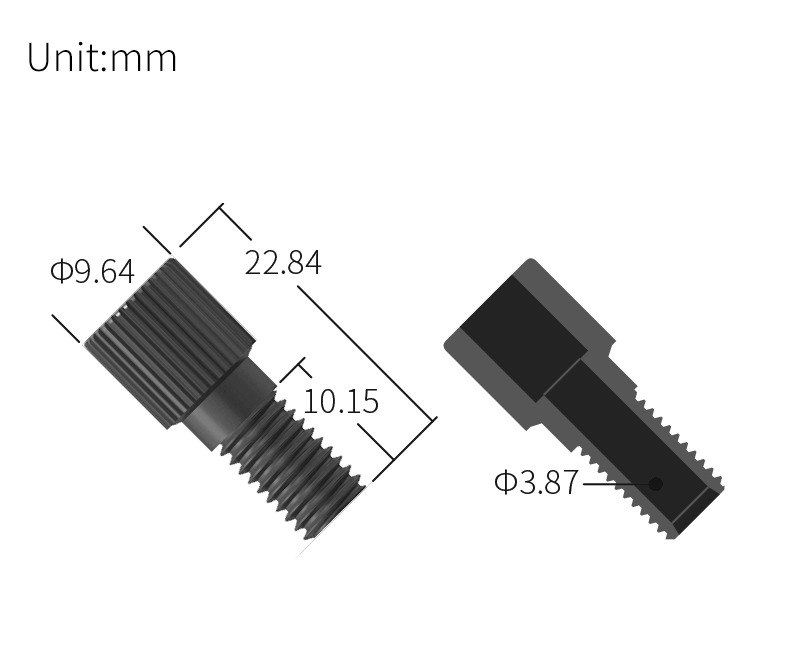

DM-NU-009
Documentation
Check the chemical compatibilities for this product here: PP - Chemical Resistance Chart
