Elbow Barbed Connector (10-pack) - PP

Product SKU:

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

Support by a team of engineers & PhDs

$8.00

Current Stock:

Quantity:

Ask an expert

Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Choose Options

Recommended Tube ID (Required)

Darwin Microfluidics

Elbow Barbed Connector (10-pack) - PP

$8.00

Decrease Quantity of undefined

Increase Quantity of undefined

General
Content
Specifications
Documentation

General

Whereas standard ChipShop connectors only accept soft-walled tubing, this set of connectors allows connecting any 1/16" OD rigid tubing to a ChipShop chip.

Suitable for rigid tubing (PTFE, PEEK, etc.) with an OD of 1/16" (1.6 mm). Manufactured in blue TPE, max. pressure of 3.2 bar with a 1/16" OD PEEK tubing.

Plugs to block unused ports are also available in our shop.

Recommended Tube ID

3 options for this product

Elbow Barbed Connector (10-pack) - PP

SKU: DM-BB-013

1/16" (1.6 mm)

$8.00

Buy in bulk and save

Available immediately

Elbow Barbed Connector (10-pack) - PP

SKU: DM-BB-014

3/32" (2.4 mm)

$8.00

Buy in bulk and save

Available immediately

Elbow Barbed Connector (10-pack) - PP

SKU: DM-BB-015

1/8" (3.2 mm)

$8.00

Buy in bulk and save

Available immediately

The elbow-shaped barbed union links two flexible tubes of the same inner diameter. Made from polypropylene (PP), it works with soft tubing like Silicone and Tygon. Available in different sizes, it fits various tubing IDs and suits a wide range of microfluidic setups.

General

The Elbow Barbed Connector is designed to securely join soft-walled tubing in microfluidic systems, with a 90° elbow shape for efficient flow direction. Available in multiple sizes, each model is tailored to specific inner diameters. It is suitable for both laboratory and industrial use. The Elbow Barbed Union are packed per 10 units.

Features

90° Elbow Design: Ideal for tight spaces and directional flow changes
Easy to Use: Plug-in design enables quick and straightforward tube connections.
Polypropylene (PP) material: Offers chemical resistance and a cost-effective solution.

Content

10x Elbow Barbed Connector

Specifications

SKU	DM-BB-013	DM-BB-014	DM-BB-015
Wetted Material	PP	PP	PP
Material	PP	PP	PP
Recommended Tubing Material	Flexible tubing (Silicone, Tygon, etc.)	Flexible tubing (Silicone, Tygon, etc.)	Flexible tubing (Silicone, Tygon, etc.)
Recommended Tubing ID	1/16" (1.6 mm)	3/32" (2.4 mm)	1/8" (3.2 mm)

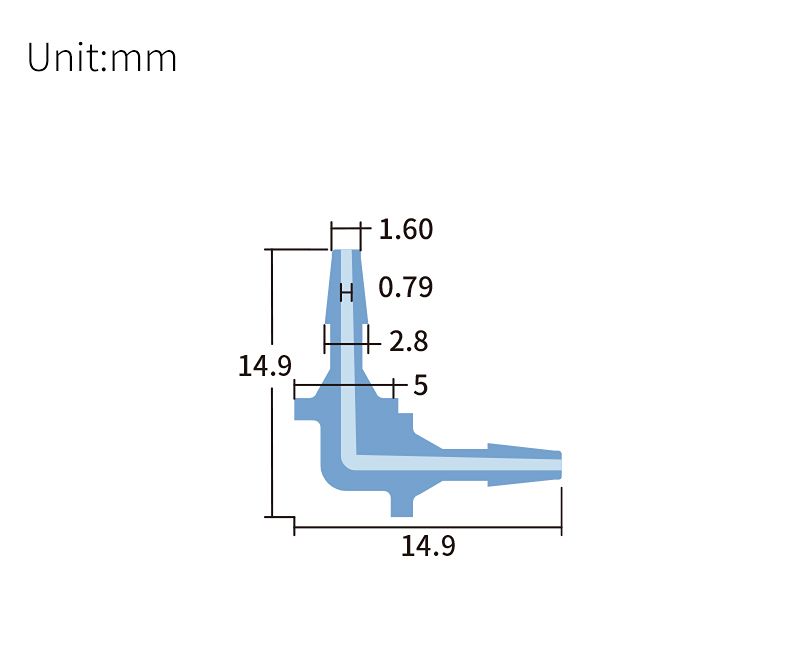

DM-BB-013
technical drawing of Elbow barbed connector (pack of 10) - PP BB-013

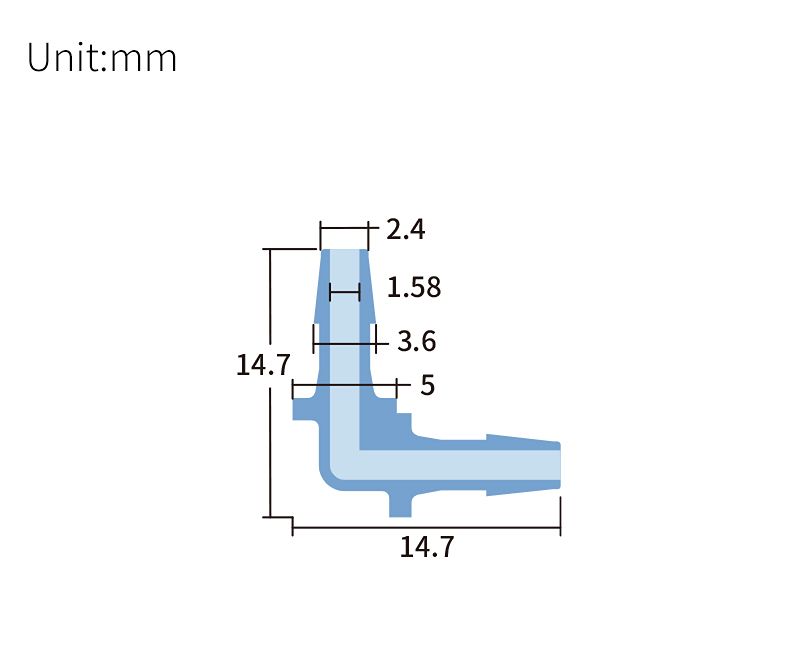

DM-BB-014
technical drawing of Elbow barbed connector (pack of 10) - PP BB-014

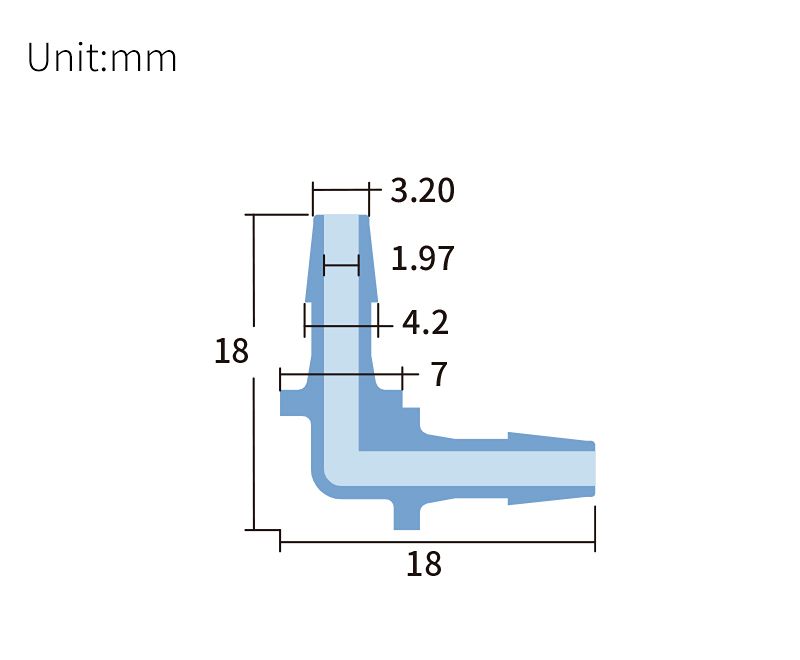

DM-BB-015
technical drawing of Elbow barbed connector (pack of 10) - PP BB-015

Documentation

Check the chemical compatibilities for this product here: PP - Chemical Resistance Chart
