The LabQ peristaltic pump is a small pump offering space-saving convenience and user-friendly use. Basic and cost-effective peristaltic pump with a 2.4 inch LCD screen display. Made in laboratory-grade ABS engineering plastic housing, this pump can reach flow rates down to a few µL/min and up to 326 mL/min.
Comes with the KT15 pump head, 1 channel.
General

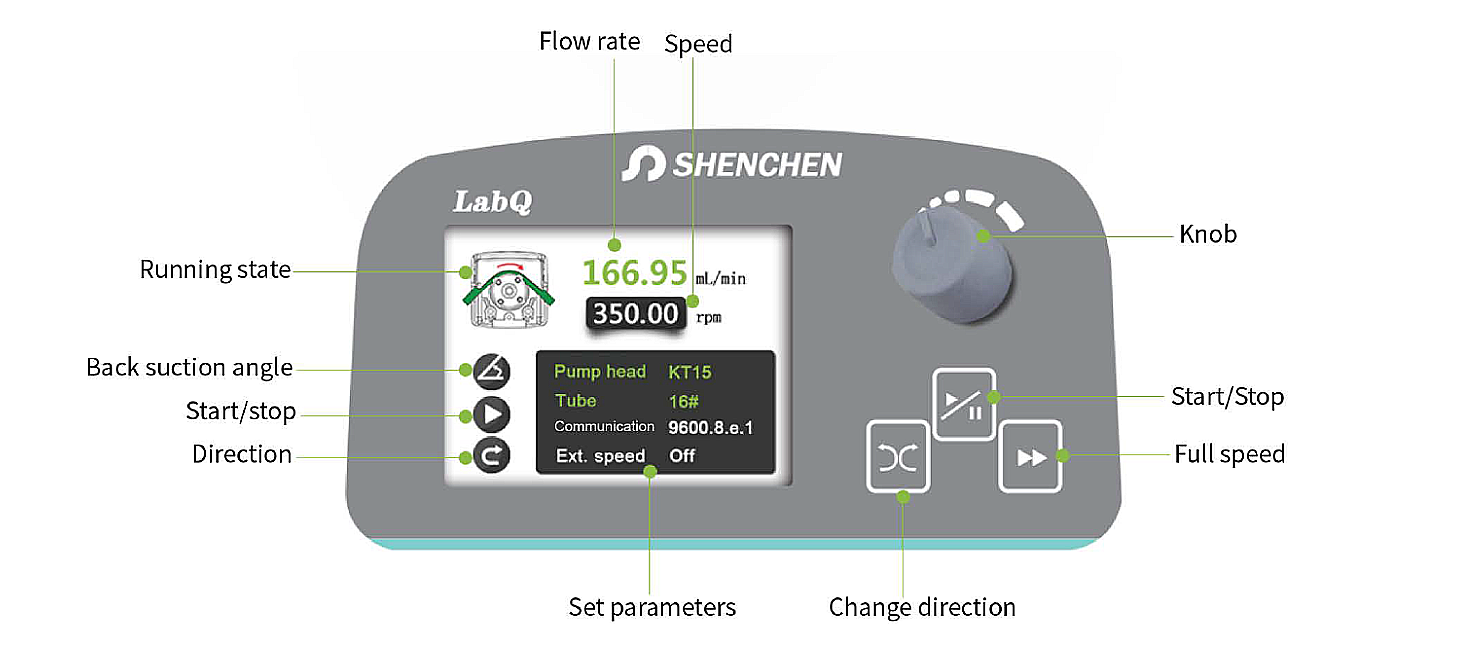

The LabQ peristaltic pump is a basic single-channel microfluidic flow control system for low budget requirements. It displays both the pump flow rate and motor speed on its 2.4 inch LCD screen and can be controlled with its knob and keypad or externally. Different features are available for basic commands: start, stop, change direction and fast forward for filling or emptying.
Features & Benefits
- Compact pump to save valuable space on your benchtop,
- 2.4 inch LCD screen displays motor speed and flow rate,
- Flow rate ranges from 3.3 µL/min to 326.55 mL/min,
- Digital knob and mechanical keypad control,
- ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
- Motor speed range of 0.1 to 350 rpm,
- KT15 pump head with 1 channel adaptable to different tubing sizes,
- Memory back up if power is lost,
- RS485 interface, Modbus protocol,
- CE & SGS certifications.
Tubing & Flow range
| Tubing |
Tubing ID x WT (mm) |
Flow rate (mL/min)
|
| 13# |
0.8 x 1.6 |
0.0033 - 11.55 |
| 14# |
1.6 x 1.6 |
0.0156 - 54.60 |
| 19# |
2.4 x 1.6 |
0.0286 - 100.10 |
| 16# |
3.1 x 1.6 |
0.0477 - 166.95 |
| 25# |
4.8 x 1.6 |
0.0933 - 326.55 |
Content
1x LabQ compact peristaltic pump with KT15 pump head
1x Power supply
No additional tubing is included with the pump.
Specifications
| Performance specifications |
| Flow rate range |
3.3 µL/min - 326.55 mL/min |
| Speed range |
0.1 - 350 rpm |
| Speed resolution |
0.1 rpm |
| External control |
Start/stop direction control (switch signal), 0-5 V, 4-20 mA, 0-10 V |
| Communication interface |
RS485 supports ModBus protocol (RTU mode) |
| Electrical specifications |
| Display |
2.4 inch LCD screen |
| Control method |
Digital knob and mechanical keypad |
| Power supply |
Output: 24V/1.25A
Input: AC100V-240V, 50Hz/60Hz |
| Physical specifications |

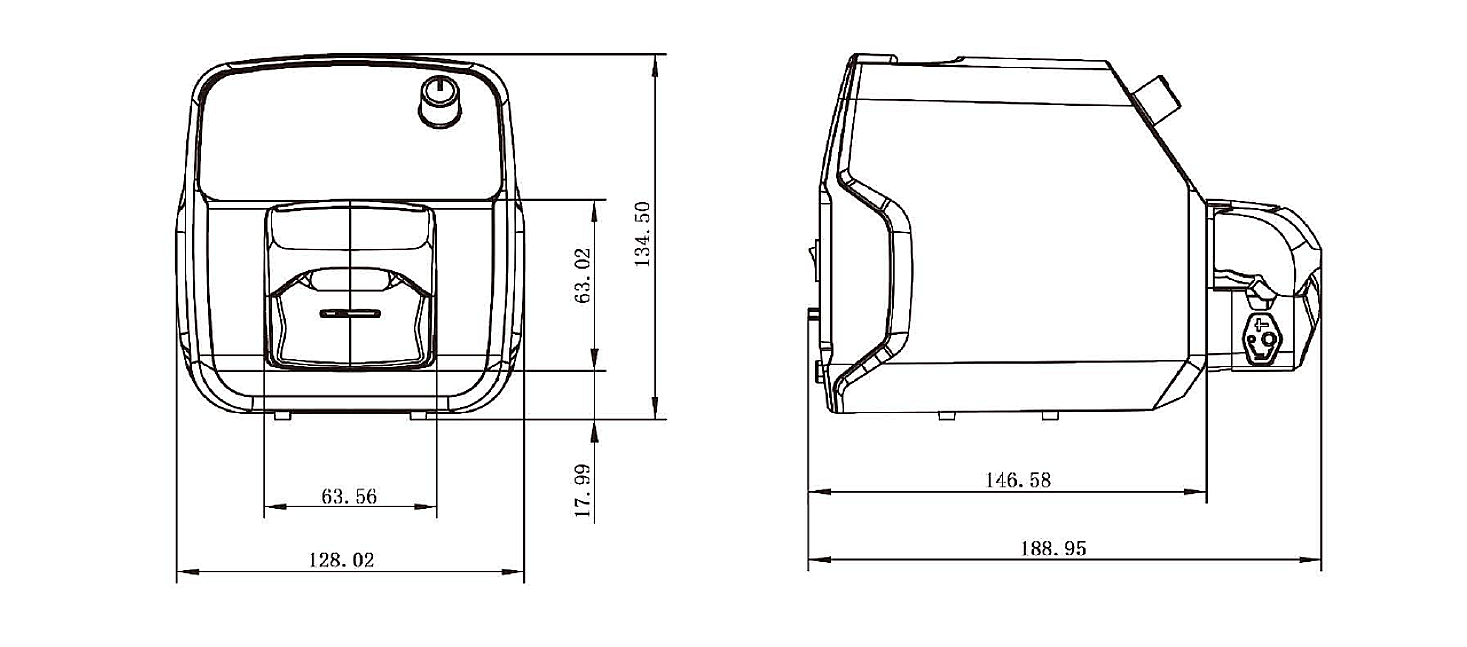

| Drive dimensions (LxWxH) |
188 x 128 x 135 mm |
| Drive weight |
1.1 kg |
| Power consumption |
< 30 W |
| Working temperature |
0-40 °C |
| Relative humidity |
< 80%, no condensation |
| IP rate |
IP31 |
| Drive material |
ABS engineering plastic shell and UV spray coating |
| Certifications |
CE, SGS |
| Warranty |
3 years |
Documentation
? LabQ compact peristaltic pump brochure
? LabQ series MODBUS Protocol
Appliable to all Innofluid Lab peristaltic pump series: How to Control a LabV Pump Using the MODBUS Protocol ?.
