The M6 Flangeless Fitting is a durable, high-performance connector for high-pressure microfluidic systems. It is available for tubing with 1/16" (1.6 mm) OD and is sold in a convenient 10-pack.
General
This Flangeless Fitting is a high-performance solution designed to create a secure, high-pressure seal with rigid tubing. The nut is manufactured from PEEK (Polyetheretherketone), while the internal ferrule is made of ETFE (Ethylene tetrafluoroethylene). This combination of materials leverages the robust mechanical strength of PEEK with the excellent chemical inertness and biocompatibility of ETFE, making it a reliable choice for demanding lab scenarios.
Features
- Flangeless: This fitting creates a secure connection without requiring the end of the tubing to be flared or flanged. The ETFE ferrule provides a strong grip on the tubing, simplifying assembly and ensuring a leak-free seal.
- PEEK & ETFE Construction: The PEEK nut provides exceptional biocompatibility, mechanical strength, and pressure tolerance, while the ETFE ferrule offers a high degree of chemical inertness to a vast range of aggressive solvents, acids, and bases. This construction ensures the connector will not degrade over time and will not leach contaminants into your samples.
Content
10x Flangeless Fitting M6 (PEEK nut + ETFE ferrule) for 1/16" OD rigid tubing

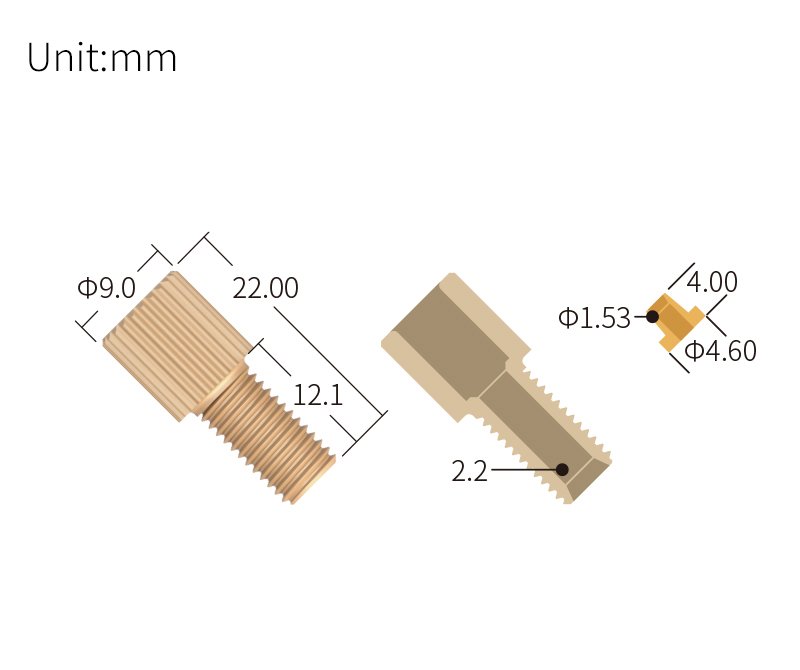

Specifications
| SKU |
DM-ST-033 |
| Nut Material |
PEEK |
| Ferrule Material |
ETFE |
| Port Type |
M6 (M) |
| Recommended Tubing Material |
Rigid Tubing (PEEK, PTFE, etc.) |
| Recommended Tube OD |
1/16" (1.6 mm) |
DM-ST-033
Documentation
Check the chemical compatibilities for this product here: ETFE - Chemical Compatibility Chart
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
