The Reaction Chamber Chip - Various chamber volumes Fluidic 134 is a microfluidic device with an arrangement of rhombic chambers of different volumes and shapes. Its main purpose is to help the user select the best chamber geometry while developing integrated microfluidic devices. The chip provides a choice of volumes between 10 µl and 60 µl, easy volume selection between six chambers, and supports up to six channels/chambers on a single chip for flexible testing and comparison.
General

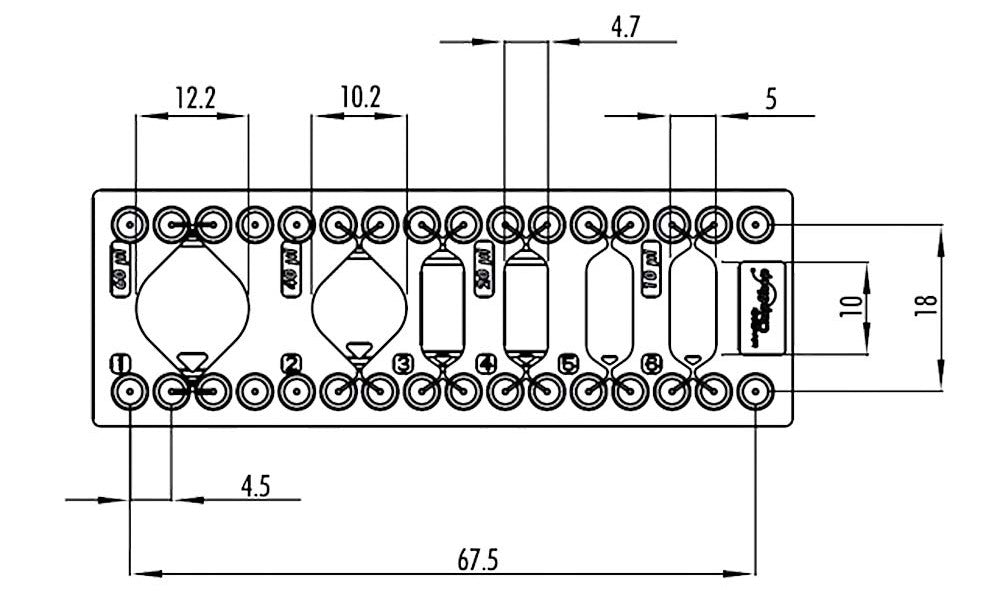

This reaction chamber chip with an arrangement of rhombic chambers with different volumes and shapes is the perfect tool to help choosing the right chamber geometry in the design process of integrated microfluidic devices. Chamber specs are as following: * Chamber 1: 10 µl volume; 200 µm depth * Chamber 2: 10 µl volume; 200 µm depth * Chamber 3: 20 µl volume; 400 µm depth * Chamber 4: 20 µl volume; 400 µm depth * Chamber 5: 40 µl volume; 540 µm depth * Chamber 6: 60 µl volume; 540 µm depth
Features & Benefits
- Multiple Chamber Volumes: Six distinct chamber volumes are available on one chip, making it easy to compare and select the best for your application.
- Flexible Geometry: Each chamber has a different shape and depth. This helps users simulate real-world design needs in one experiment.
- Material & Surface Options: Users can choose between three materials (PMMA, Topas, Zeonor) and untreated or hydrophilized surfaces to best match their experimental requirements.
This chip is designed for researchers and engineers developing microfluidic systems. The six chambers let users quickly compare how different geometries perform for their application.
The chip supports various materials and surface finishes, so it fits a broad range of chemical and biological processes. Its transparent body makes visual checks easy. No membrane is included, which helps with compatibility for most fluidic tests.
Applications
The Reaction Chamber Chip - Various chamber volumes Fluidic 134 is ideal for design validation, prototyping, performance testing, and educational demonstrations related to integrated microfluidic devices.
- Selection of optimal chamber design for microfluidic devices
- Testing mixing, reaction, or incubation protocols
- Comparing different chamber volumes and shapes in a single run
Content
1x Reaction Chamber Chip - Various chamber volumes Fluidic 134
Specifications
| SKU | CS-10001853 | CS-10000299 | CS-10000121 | CS-10001875 | CS-10000432 | CS-10000122 |
| Material | PMMA | Topas | Zeonor | PMMA | Topas | Zeonor |
| Material chip body | mcs-PMMA 08 | Mcs-COC 13 | mcs-COP 02 | mcs-PMMA 08 | Mcs-COC 13 | mcs-COP 02 |
| Material chip lid | mcs-foil 147 (PMMA; 175 µm; Tg 109°C) | mcs-foil 011 (Topas; 140 µm; Tg 78°C) | mcs-foil 005 (Zeonor; 188 µm; Tg 136°C) | mcs-foil 147 (PMMA; 175 µm; Tg 109°C) | mcs-foil 011 (Topas; 140 µm; Tg 78°C) | mcs-foil 005 (Zeonor; 188 µm; Tg 136°C) |
| Color | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent |
| Design element | Chamber | Chamber | Chamber | Chamber | Chamber | Chamber |
| Surface treatment | Not treated | Not treated | Not treated | Hydrophilized | Hydrophilized | Hydrophilized |
| Membrane | no membrane | no membrane | no membrane | no membrane | no membrane | no membrane |
The old reference of CS-10001853 is CS-10000269.
Documentation
Click to read more information about ChipShop chips material properties.
? Rhombic chamber chip Fluidic 134 datasheet
