A pack of 3 thin bottom flow cell chips in glass with topconnect interface, to be used with the Micronit Fluidic Connect Pro chip holder.
Each chip has 3 straight channels of identical or different widths.
General
Thanks to its design and thin bottom plate (145 to 175 µm), this chip is ideal for cell, particle, or DNA imaging. It offers the following features:
- 3 straight channels of identical or variable width: 500 µm or 1500 µm or 500 µm / 1500 µm / 1000 µm
- Thin bottom plate of 145 or 175 µm, suitable for confocal microscopy
- Manufactured from high-quality borosilicate glass, inert to most chemicals and biocompatible
- Precision-etched microfluidic channels for reproducible results
- Hydrophobic coating available

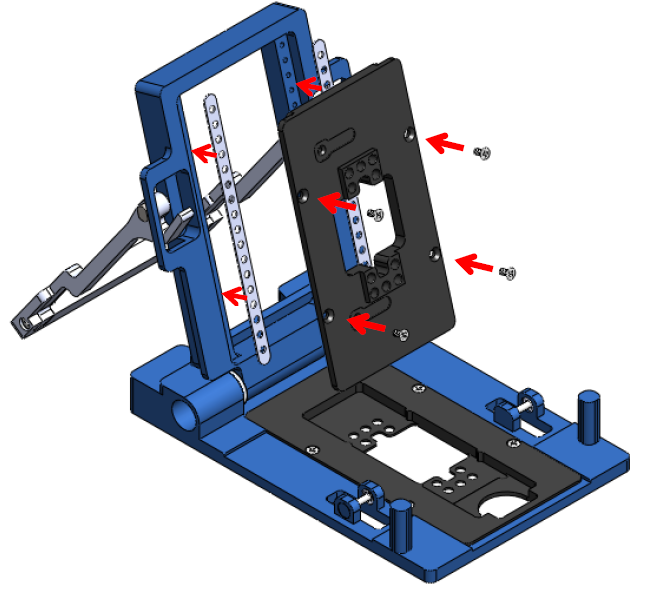

Use of this product in combination with our Fluidic Connect Pro chip holder requires the use of the metal strip provided together with the holder, to assure sealing. The strips are placed beneath the top insert, as shown in the picture below (choose "Flow cell" type when buying your chip holder).
Content
3x Thin bottom flow cells - topconnect
Specifications
| Number of channels |
3 (different widths) |
3 (same widths) |
| Channels width |
500 µm, 1500 µm and 1000 µm |
500 µm |
1500 µm |
Thin bottom thickness
|
145 µm |
175 µm |
| Channels height |
50 µm |
| Chip thickness |
1800 µm |
| Chip material |
Borosilicate glass |
| Interface type |
Topconnect |
| Chip dimensions |
Supplied in a black polymer cardtridge with an external dimension of 75 x 25 mm. The functional glass element has a size of 45 x 15 mm. |
| Inlets / outlets |
3 / 3 |
| Compatible holder |
Fluidic Connect Pro |
Documentation
? Thin bottom flow cell technical drawing - 0.5 / 1.5 / 1.0 mm width
? Thin bottom flow cell technical drawing - 0.5 mm width
? Thin bottom flow cell technical drawing - 1.5 mm width
